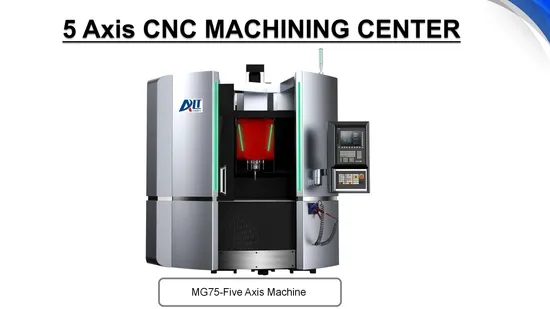

High Precision Metal Machining Center Vertical Factory 5 Axis CNC Milling Machine

Product Description

High Precision Metal Machining Center Vertical Factory 5 Axis CNC Milling Machine
Product Description

Main parts	Parts Features
X/Y/Z/A/C axis travel	700*420*330mm-±120°*±360°
DD 5-axis table size	Φ 250(Max. piece Φ 350)
Iead screw	Japan NSK ф40-10(Hollow oil-cooled)
Guideway	INA 45 Ball line rail
Cutting feed	20m/min
Rapid feed	30m/min
T-slot size	12mm
XYz axis positioning accuracy and repeatability	0.004/0.002
A-axis positioning accuracy and repeatability	10″/8″
C-axis positioning accuracy and repeatability	6″/5″
A-axis rated torque and maximum torque	131.7/527.8N*M
C-axis rated torque and maximum torque	55.9/251.9N*M
A-axis braking mode and braking torque	Air brake / 300N *M
C-axis braking mode and braking torque	Air brake / 150N *M
Bench up to ground height	940mm
Distance from workbench to spindle end surface	150-480mm
Maximum bench load (average load)	Horizontal 50Kg; Vertical 30Kg
Distance from the spindle center to the front of the fuselage	680mm
Maximum work size	Φ350*280mm
Spindle type	150 Electrospindles
The highest speed of the main shaft	20000rpm
The principal shaft is rated power	20Kw
The main shaft is rated torque	30.7N*M
Spindle cooling	water-cooled
spindle taper	HSK-A63
Maximum capacity of the knife library	24T
Tool specification	A63
Maximum diameter (no adjacent knife)	120mm (160mm)
Tool length	250mm
Knife weight	5Kg
Three-axis motor power	3/3/3Kw
Outline dimensions of the machine tool	2260*3200*2650mm (including rear chip conveyor)
Machine heavy	6500Kg

Anoher Advantages
• Immerse yourself in unparalleled processing conditions within our cutting-edge production environment. We guarantee peak performance and remarkable results, continuously setting new industry standards.
Our sophisticated imported equipment-ranging from horizontal and vertical machining centers to high-precision CNC boring machines equipped with rotating tables, and gantry guideway grinding machines-ensures exceptional workpiece accuracy. This robust setup significantly improves assembly precision and extends the operational longevity of our products.
• Innovative Detection Techniques
Positioning accuracy is rigorously tested and calibrated using advanced laser technology. Adhering strictly to the German VDI3411 inspection standards, we conduct five thorough tests per standard to ensure unmatched precision.
Each machine tool undergoes comprehensive processing tests before shipment, ensuring they consistently surpass actual processing accuracy standards.
Product sample
• Experience unparalleled efficiency with our cutting-edge Automated 4-Axis CNC Drilling Milling Center. This advanced machine seamlessly integrates milling, drilling, and tapping functionalities, setting a new benchmark in productivity, precision, and performance. Ideal for vertical machining, it revolutionizes your production process, ensuring optimal results and superior quality.
• Master the art of precision with our meticulously engineered CNC machine, designed to handle a vast array of materials, including aluminum, steel, copper, and non-metal profiles. Elevate your craftsmanship to new heights and achieve meticulous detail in every project. Each piece becomes a true work of art, showcasing exceptional skill and superior quality.
• Elevate your production capabilities across diverse industries, including 3C electronics, rail transportation, aerospace, and linear module guide rails, with our versatile CNC machining solutions. Our state-of-the-art technology ensures unmatched versatility and top-tier performance, pushing the boundaries of possibility and driving innovation in every field.
Packaging & Shipping
•Highly Protective: Our meticulously crafted packaging solutions ensure the Vertical CNC Drilling Machine Center remains impeccably secure throughout transit. Leveraging superior protection, we eliminate potential damage, providing peace of mind and guaranteeing the machine's pristine condition upon arrival.
•Structural Stability: Engineered with precision, our packaging assures the machine's structural integrity. Each component is securely shielded, ensuring the machine reaches you in flawless condition, ready for immediate, seamless operation straight from the box.
•Environmentally Friendly and Recyclable: Upholding our commitment to sustainability, our packaging materials are robust and eco-conscious. Fully recyclable, our solutions minimize environmental impact, blending exceptional protection with responsible environmental stewardship, embodying our innovative approach to both technology and packaging.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering, ensuring your order's priority. The remaining 60% balance is due before shipment, guaranteeing a smooth and seamless transaction.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, allowing you to select the most convenient and cost-effective option tailored to your needs.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we typically have your order ready within 30 days. Custom or special machines might require additional time. Place your order according to our provided delivery schedule to ensure timely and reliable delivery.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set. We proudly offer a comprehensive one-year warranty, ensuring your peace of mind and utmost satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case to ensure it reaches you in perfect condition, safeguarding your valuable investment.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model tailored to your precise needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, allowing us to identify the ideal machine configuration to meet your specific requirements.
