High Quality Industrial Drilling Machine with Strong Rigidity Square Colomn Vertical Drilling Machine

Product Description

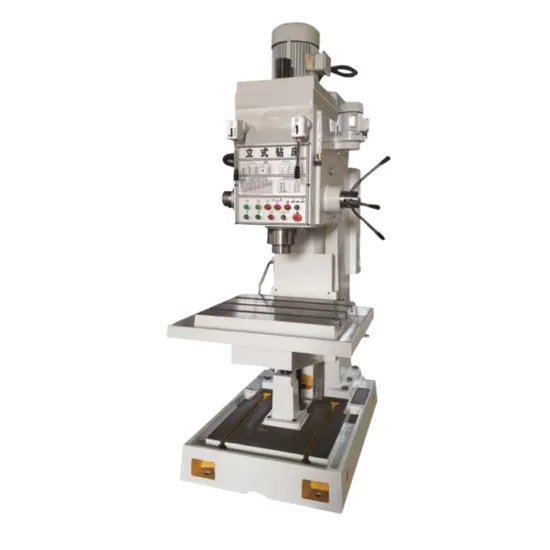

Product Picture

Specification Parameter

Specification	Z5150B	Z5163	Z5180
Max drilling diameter	50	63	80
Spindle taper	MT5	MT5	MT5
Stroke of spindle quil	250	300	250
Spindle box travel(manual)	200	250	250
Spindle speed step	12	12	12
Spindle speed range	31.5~1400	45~855	40~570
Spindle feed step	9	9	9
Spindle feed range	0.056~1.8	0.056~1.8	0.11~0.78
Table size	560*480	560*650	550*650
Longitudinal (cross)travel
Vertical travel	300	300	300
Max distance between spindle and table surface	750	800	800
Main motor power	3	5.5	5.5
Overall size	1090*905*2465	980*1400*2790	1000*1470*2850
Net weight	1350	2000	2100

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
