High Capacity Wheat Stalk Chopper Machine for Animals Feed Silage Chaff Cutter

Product Description

High Capacity Wheat Stalk Chopper Machine for Animals Feed Silage Chaff Cutter Product Description

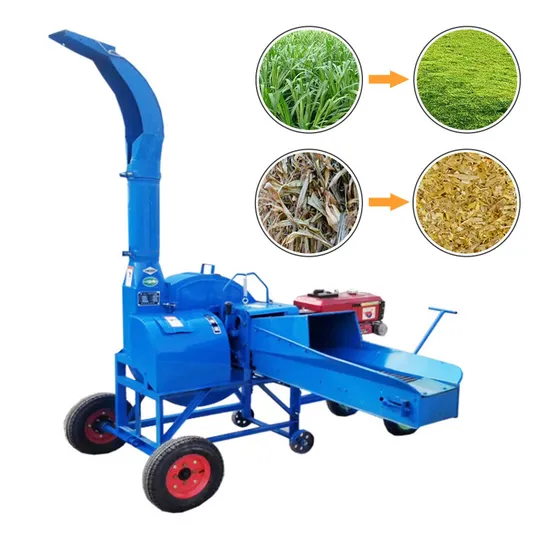

Our Vanmay Chaff Cutter Machine 9ZP-4.5 is widely used for cutting fresh (dry) grass, fresh (dry) corn straw, wheat straw, rice straw, stalks, other crops straw and etc...It is the best choice for family or dairy farm to breed animals, such as cow, sheep, deer, horses, rabbit, etc...

1. Wide Application

Contact Us

2. Chaff Cutter Machine Details

Contact Us

Chaff Cutter Machine Features:
1. With high cutting rate and less electricity consumption;
2. Any OEM & ODM is highly welcomed, and any customization is also accepted;
3. Our Chaff Cutter Machine can be driven by high quality Electric Motor (With Copper Wire), Diesel Engine, and Petrol/Gasoline Engine for your more choices according to your local situations;
4. Feeding rollers in our Chaff Cutter Machine are made by Casting Iron with longer service life;
5. Discharging size can be adjusted easily;
6. We use the high quality blades for our Chaff Cutter Machine, not the ordinary blades, which is 3 times of the ordinary blades' service;
7. High-strength bolts are used for connection to provide safe and reliable operation in our Chaff Cutter Machine;
8. Steel frame structure, small volume, light weight, and convenient to move;
9. Unique adjustable speed gear box structure, easy and precise adjustment of grass length, reliable sealing, good lubrication;
10. Advanced feeding and conveying mechanism is controlled by a switch, easy to switch.

3. Technical Specifications

Contact Us

9ZP-4.5/9ZP-6.5 Chaff Cutter Machine
Item Name	Chaff Cutter Machine
Model No.	9ZP-4.5 / 9ZP-6.5
Capacity	4.5-8t/h
Matched Electric Motor Power	5.5-7.5kw
Matched Diesel Engine Power	11-15hp
Voltage	220v/380v
Blades Quantity	4pcs
Suitable Raw Material for Processing	all kinds of grass, millet straw, rice straw, corn silage, wheat stalk, corn plants, etc...
Cutting Length	12-35mm
Spindle Speed	800r/min * 650r/min
Inlet Feeding Rollers Rotation Speed	300r/min * 284r/min
Feeding Inlet Width	125mm
Inlet Type	Automatic type
Main Machine Weight	300kg/420kg
Overall Dimension	1737*1575*2315mm/2147*1600*2756mm

4. Factory Show

Contact Us

Our Henan Vanmay Industry Co.,Ltd, which is located in Zhengzhou city, Henan province, China has built a good and high reputation on building the most cost-effective machinery equipment in China. Vanmay is recognized globally as an expert in providing industry leading process design, engineering and manufacturing to a variety of industry machines. Whatever you require, our Vanmay's professional team can design and manufacture your machines for your application.
Our Main Products: Chaff Cutter Machine, Grinding Machine, Grass Chopper Machine for Animals Feed, Silage Baler & Wrapper Machine, Mixer Machine for Animals Feed, Pellet Machine for Animals Feed, Animals Feed Grinder Machine, Rice Mill, Paddy/Wheat Harvester, and etc...
Our Goal: Providing our clients the best solution, quality, price, and after-sales service.

From initial feasibility report and testing, to engineering, manufacturing, and after-sales services, we bring our great passion for quality and service into everything we do. Sincerely do hope that we can cooperate with you to maximize the mutual benefits of all parties involved, and foward to a beautiful and brightful future together.

5. Customers' Visiting

Contact Us

6. Package & Shipping

Contact Us

7. FAQ

Contact Us

Q1: What is the MOQ for your Chaff Cutter?
A: Our MOQ is 10 sets. And any order quantities are highly appreciated.
Q2: Can I get a free sample of your Forage Chopper Machine?
A: Yes, surely, we would like to provide the sample for you. But, we are afraid that you will pay for the sample and delivery cost.
Q3: What is your guarantee period for your Silage Making Machine?
A: Our Silage Grass Cutting Machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.
Q4: Do you accept OEM & ODM?
A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the Feed Chopper. Even we are willing to design the color, logo, packages for you.
Q5: Can I test your Animal Feed Grass Chopper with the raw material when visiting your factory?
A: Yes, surely, any testing our Stalk Straw Grass Chopper with the raw material is highly appreciated.
