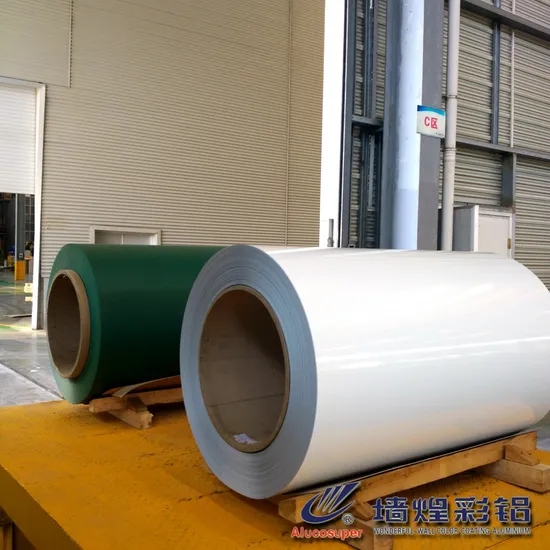

0.27mm Color Coated Steel Coil for White/Green Writing Board

Product Description

Product Description
0.27mm Thickness Green White Teaching writing Board
Brand name:Alucosuper
Painting:Polyester(PE) Epoxy
Standard:ASTM, JIS,AISI, GB
Grade:SGCC.SPCC.SPCD,SECC,DX51D,DX52D,DX53D
Thickness:0.2mm~0.8mm
Width:1000mm, 1200mm, 1350mm, 1500mm or as your request
Zinc coating:40-250g/m2
Color:Ral code or as the client request
Packing:Wooden with the waterproof paper
Delivery:10-15days
MOQ:5tons or negotiable
Cetificate:SGS ISO9001 ROHS
Specifications

Brand Name	Alucosuper
Product Name	PPGI / PPGL (PCM)
Thickness of Base Metal	0.2~0.8mm
Painting material	Polyester(PE) PVDF epoxy
Painting Thickness	7~30μm
Surface Protection	PE protective film
Color	Ral code or as the client request
Surface Treatment	Degreasing and chemical treatment
Gloss	5-105%
Coating Hardness (pencil resistance)	≥H
Flexibility (T-bend)	≤2T
MEK resistance	More than 100
Supplying Status	Sheet:Width≤2000mm,Length≤5000mm
	Coil:Width≤2000mm,N.W≤5T,Inner Diameter:Φ408mm φ505 φ508
Application	Home appliance:Refrigerator shutter & side panels, Washer, Freezers, Air conditions, Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods Computer Panels DVD/DVB panels, TV back panel etc. Teaching Board:Whiteboard, blackboard, greenboard(chalk board).

Company Profile
ANHUI WONDERFUL-WALL SCIENCE TECHNOLOGY CO.,LTD
Anhui Wonderful-wall Science Technology Corp.Itd.(Hereinafter referred to as"Wonderful-wall corp.")is a subsidiary Jinggong Holding Group.Established in 1996,with 2 production basement located in Lu'an,Anhui and Shaoxing,Zhejiang,covering area of 270,000 square meter.We specializes in the research and development,manufacturing,selling kinds of prepainted aluminium coil(PPAL),prepainted steel coil(PCM),solid aluminium sheet,ACP,decorative energy-saving composite panels, and film laminate metal(VCM).It is the largest and most comprehensive technology enterprise,a color coating aluminium industrial manufacturer along with the largest production scale,the most complete specifications and the first-class equipment in domestic and Asia.8 domestic and oversea advanced color coating matching with 10 slitting, cutting production line,2 solid aluminium sheet production line,1 3-colors printing production line,1 embossed production line and 2 decorative energy saving composite panel.With annual production capacity of 100,000MT PPAL, 120,000MT PCM,2 million square meters solid aluminum sheet,1.5 million square meter ACP,1 million square meter decorative energy-saving panel.
Work Shop:


Exibition Room:
Test:

Certifications:
FAQ
1.How can I get some samples?

We are honored to offer you samples. New clients are expected to pay for the courier cost. The samples are free for you, this charge will be deducted from the payment for formal order.
2.Are you a manufacturer?
Yes, we are. We have our own factory in Anhui province, China. As manufacturer, our customers are welcomed to visit our factory.
3.Do you have any certificates?
Our products passed inspection of SGS, ISO9001, CTC.
Quality is our culture! Every worker keeps the QC from beginning to end, Quality control department especially responsible for quality checking in each process.
4.What information should I let you know?
1) The size of products (Alloy ,width ,thickness, color, application);
2) The specification of the products you want;
3) It will be better if you can show us the pictures or design sketch. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference.
5.Can you do the design for us?
We usually produce goods based on customers' samples or based on customers' picture, logo, sizes etc.
Read before inquiry:
1. If you want to accurate quotation,kindly to share us what types do you need? Such as color, thickness, dimension, materials and application etc, which are very important to provide you accurate price.
2. Did you use it before? If yes, can you share a picture or drawing for our reference?
3. What's your estimated annual usage? And what is the quantity of each order?
4. If your quantity can't reach MOQ, you need to pay additional expense. Anhui Wonderful-wall Science Technology Co., Ltd
