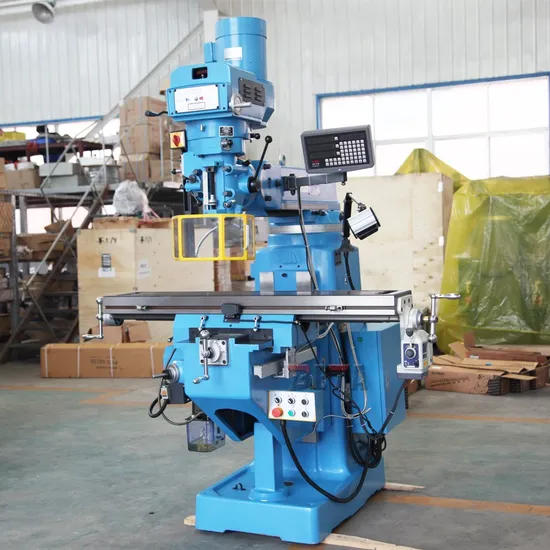

X6330 Taiwan Turret 5HP Milling Head ISO40 Spindle Milling Machine
Basic Info.
Model NO.
X6330
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Taiwan Turret Milling Head ISO40 Spindle Milling M
Model
X6330
Table Size
305*1370mm, 305*1500mm
Spindle Taper
ISO30
Spindle Speed
65-4500rpm
Spindle Motor Power
3.7kw 5HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
500mm
Color
Blue and White
Key Word 1
Milling Machine for Metal
Key Word 2
Turret Milling Machine
Key Word 3
China Milling Machine
Spindle Travel
127mm
Transport Package
Wooden Pallet
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description
X6330 Taiwan Turret 5HP Milling Head ISO40 Spindle Milling Machine| Item / Model | Unit | X6330 | X6330A |
| Table size | mm | 305×1370(12"×54") | |
| T slot No.and size | 3 × 16 | ||
| Long travel | mm | 870 , 1000 | |
| Cross travel | mm | 360 | |
| Vertical travel | mm | 380 | |
| Distance from horizontal spindle to table | mm | 0-350 | |
| Ram travel | mm | 500 | |
| Spindle taper | (standard):ISO40 | ||
| Spindle travel | mm | 127 | |
| Spindle speed | rpm | (standard):(shiftgrade) 50HZ65-4500 60HZ:80-5440 | |
| (optional):(variable)65-3750 | |||
| Auto.quill feed | (threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution | ||
| Spindle motor power | kw | 3.7 kw/5HP | |
| Head swivel | ° | 90° | |
| Head tilting | ° | 45° | FIX |
| Dimension of package | mm | One milling machine on one pallet 1566x1650x2080 | |
| Two milling machine on one pallet 1720x1800x2175 | |||
| G.W/set | kg | 1630 | 1650 |
