High Efficiency Double Disc Fiber Refiner for Wood Pulp Refining

Product Description

Product Description The double disc refiner is a continuous beating equipment for the paper pulping system. It has the characteristics of compact structure, small footprint, high efficiency, low power consumption, strong adaptability, simple operation, flexible adjustment, and convenient maintenance. It is the ideal continuous Beating equipment. According to the requirements of the beating process, single or multiple units can be used in series or parallel.
Advantage:
(1) Mainly used for beating pulp to improve the tapping degree of pulp and meet the needs of papermaking.
(2) A variety of tooth-shaped grinding discs can be installed, with a wide range of raw materials, suitable for wood pulp, chemical pulp, chemical pulp, waste paper pulp, etc.
(3) Double grinding zone, high refining efficiency.
(4) High versatility and convenient maintenance

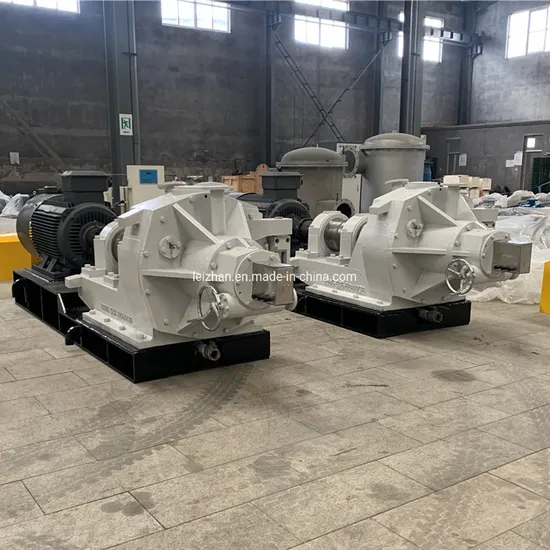

Detailed Photos
Our Advantages DD series double disc refiner is available for continuous beating section of paper industry. It is available for continuous beating of virgin pulp, chemical wood pulp, mechanical pulp and waste paper pulp.
*Specially designed rotary disc is self aligned automatically under the function of stock.
Advantage :
*According to refining requirement, clearance is adjustable through electromechanical device.
*Special tool for easy and fast change of refiner disc.
*High strength welded structure to ensure stable and reliable operation.
*The beating effect is stable and uniform.
Product Parameters

Model	ZDP-380	ZDP-400	ZDP-450	ZDP-550	ZDP-600	ZDP-660
Refiner plate dia (mm)	380	400	450	550	600	660
Capacity (T/D)	6-20	7-25	8-40	20-100	30-150	40-200
Inlet Consistency: (%)	2-5
Inlet pressure (Mpa)	0.1-0.3
Inlet pipe dia (mm)	2-65	2-65	2-70	2-90	2-110	2-130
Outlet pipe dia (mm)	80	80	90	100	120	150
Motor Power: (kW)	37	37	90	160-250	200-315	220-500
Main shaft speed	980	980	980	980	980	750
