Inner Circle Slicing Machine for Micro Semiconductor
| US$1.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
md-idc9580
Control
Artificial
Automation
Automatic
Precision
Precision
Certification
CE
Condition
New
Structure
Horizontal
Control System
PLC
Glass Washing Machine Type
Ultrasonic Glass Washing Machine
Glass Edging Machine Type
Glass Round Edging Machine
Grinding Head Number
4
Transport Package
Plywood
Specification
1000kg
Trademark
minderhightech
Origin
Zhejiang
Production Capacity
1000
Product Description

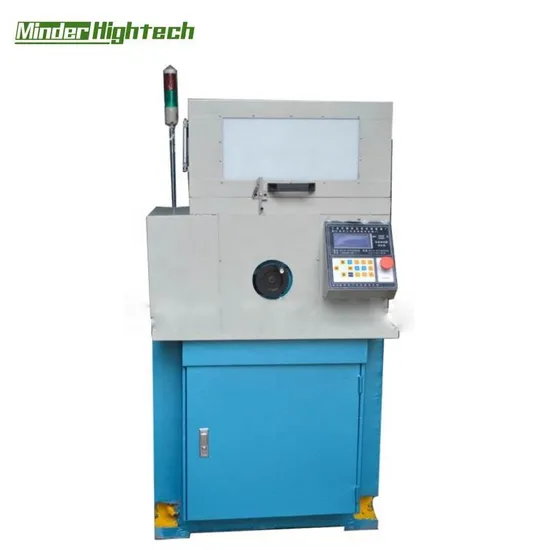

INNER CIRCLE SLICER
Details
Inner circle fully automatic slicing machine is using inside circle to cut a variety of semiconductors, crystal, ceramic, NdFeB magnetic material.
Installed in the spindle, the edge-type Diamond blade cutter is high-speed rotating, the table was feeding by computer control of horizontal and vertical movement, the material on the fixture of the table was cut into the required product.
We have the semi-automatic/fully automatic inner circle clicking machine, within a circle slicer two kinds of specifications, a variety of models.
For the Automatic Slicer inner circle. a worker can operate about 16 units slicer at the same time.
MD-IDC9580
Main technical parameters:
| Max machining size(mm): | φ95 ×80 mm |
| Cutting speed (cm²/mm): | 3-6(cm²/mm) |
| Degree of balance sheets by cutting deviation(mm): | ±0.005mm |
| Cutting film thickness(mm): | ≥0.30 |
| The thin-cut tolerance(mm): | ±0.005mm |
| Horizontal stroke(mm): | 120mm |
| Longitudinal travel(mm): | 110mm |
| Spindle Electrical: | 3 Phase 0.75kw |
| Spindle Speed (r/min): | 2800Rev / min |
| Adjust the amount of work clamp: | |
| Horizontal angle: | ±45º |
| Pitch angle of elevation: | ±10º |
| Vertically(mm): | 20 |
| Cooling tank capacity(kg): | 50kg |
| Cooling tank motor: | 3 Phase 0.12kw 2780r/min |
| Power: | Three-phase four-wire 50Hz 380V |
| Dimensions(mm): | 1130 ×850 ×1500 |
| Weight(kg): | ∽1400(kg) |
Contact:
Guangzhou Minder-hightech Co.,ltd
No.1 Xingya 3rd road, Panyu district, Guangzhou, Ghina
contact: Shunyu Hu
www.minder-hightech.con
