Manufacturer Th Series Horizontal Injection Molding Machine for Cosmetic Pharm Bottles

Product Description

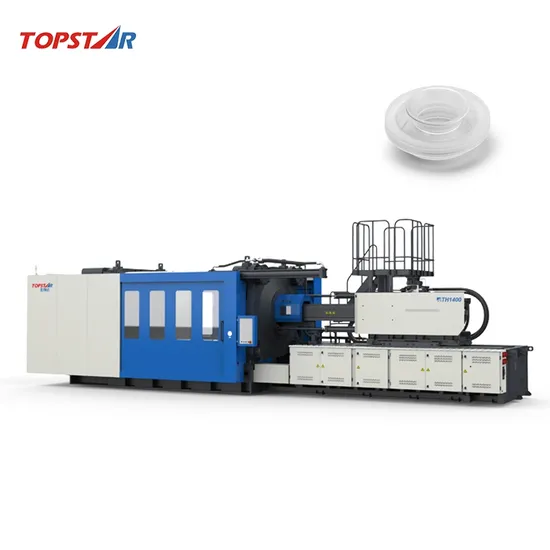

Topstar 130-1400Ton Direct Clamp Injection Molding Machine

Product Description:
The TH series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes themachine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small mdeformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. High performance chrome plated screw, durable and efficient, wide range of application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TH1400
Screw Diamete	mm	110	120	130
Screw L/D Ratio	L/D	24.0	22.0	20.3
Screw Stroke	mm	575	575	575
Shot Volume	cm3	5464	6503	7632
Shot Weight(ps)	g	4973	5918	6945
	oz	175.0	208.3	244.5
Injection Pressure	kgf/cm3	2029	1705	1453
Injection Rate	cm3/s	943	1122	1317
Injection Rate	mm/s	99	99	99
Screw Speed	rpm	124
Nozzle Contact Force	t	21.0
Nozzle Stroke	mm	840
CLAMPING UNIT	UNITS	TH1400
Clamping Force	t	1400
Opening Stroke(Min)	mm	1550
Opening Stroke(Max)	mm	2400
Platen size(H×V)	mm	2060*1780
Space Between Tie Bars(H×V)	mm	1470*1370
Mlould Thickness (Min)	mm	600
Mlould Thickness (Max)	mm	1450
Max. Daylight	mm	3000
Ejector Force	t	32.0
Ejector Stroke	mm	350
Locating Ring	mm	200
Number of Temp Control Zones	-	25
POWER/HEATING UNIT	UNITS	TH1400
System Pressure	kgf/cm3	175
Pump Power	kw	114
Heating Power	kw	80
Number of Temp Control Zones	-	8+1
OTHERS	UNITS	TH1400
Machine Dimensions(LxWxH)	m	11*3.2*3.4
Oil Tank Capacity	L	1500
Machine Weight	t	58
Platen Specification

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.
