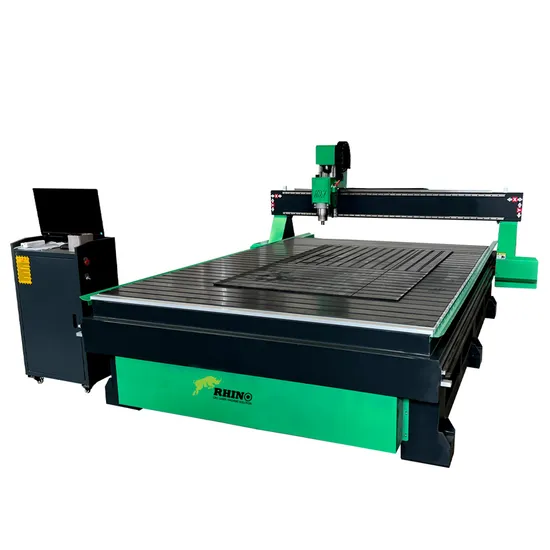

Woodworking Vacuum Table 1325 1530 2030 2040 Heavy Duty CNC Wood Engraving Cutting Milling CNC Router or Furniture Cabinet Sofa Making Factory CE

Product Description

Woodworking Vacuum Table 1325 1530 2030 2040 Heavy Duty CNC Wood Engraving Cutting Milling CNC Router or Furniture Cabinet Sofa Making Factory CE
Product Parameters

X-Y-Z axis working area	1,300 x 2,500 x 300mm
Machine size	2,150 x 3,150mm
Resolutions	0.025mm
X-Y movement	Rack and pinion, gear drive/TaiwanHIWIN
Z movement	Ball screw drive/Germany
Guide	Linear ¢20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle	4.5kw(AIR cooling)
Spindle speed	18,000rpm
Inverter power	4.7kw
Drive motors	SERVO system motor and drivers
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.2
Collet	ER20-12.7mm,6mm,3.175mm
Software	Type3 Software/France
Controls	DSPA11 (Digital Signal Processor)
Packing dimensions	2260 x 3250 x 1800 mm,1450 kgs
Equipment included	a. VACUUM machine table b. Auto cut adjusting device c. Oil lubrication system d. 20 sets tools for free e.Dust collector

Specifications of CNC Wood Carving Machine R-1325
Ø Machine all axis adopt Taiwan HIWIN20 square linear guide rail. the bearing of the lead guide rail is face to face, ong time use precision still high.
Ø German double nut automatically TBI brrand ball screw on Z axis wtih diameter 32mm .
Ø High speed drivers, fast speed and great strength with Japan servo 850W and encoder cable.
Ø No dust oiling structure, guarantee the long term running of the mechanical aspect.
Ø Function of power off and start continue engraving at the break point, can engrave at any place as you like.
Ø Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
Ø Italy HSD/China HQD 4.5KW high power frequency changing air cooled spindle, can process hard materials efficiently like all kinds of wood,plywood,mdf etc Our Advantages
Performance Features:
1. Heavy body : heavy intergral welding structure, 8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability).
2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.
3. Two motors drive system for Y axis.
4. Professional vacuum system, strong adsorption capacity.
5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.
6. WEIHONG DSP system , hand controller.
7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.
8.CE certificate safe and high quality cables that make sure make sure machine run many years no any problem and keep machine very safe still
9. Original electronic parts like leadshine 860H drivers, 450B stepper motors and high quality belts
10. Vacuum table with vacuum pump 7.5kw more convenient to fix materials
11. Fast cutting engraving speed with high precision
12. 24 hours running machine before delivery to make sure 0 mistake in production

Material & Application
Application area of CNC Wood Carving Machine
1. It is used in all kinds of wood FURNITURE AREA like three dimensional wave board processing, cabinet door, solid wood door, craft wood door, paint free door, screen, craft fan window processing, shoeshine machine, game machine cabinet and panel, mahjong table, computer table and panel furniture products auxiliary processing.
2. Machine also can be used in sign and LED field like advertising signs, logo production, acrylic cutting, plastic molding, production of various materials advertising products.
3. Also the mold industry also no problem that for carving copper, aluminum, iron and other metal mold, as well as artificial marble, sandstone, plastic plate, PVC pipe, wood and other non-metal mold.
4. The Other industries like all kinds of large relief and shadow carvings, which are widely used in Arts and crafts industry

Materials can be worked by this machine:
All kinds of wood like solid wood,elm, willow, Redwood, teak, toon, cherry, rosewood, Redwood, white pine, Paulownia, etc.
Other materials like arcylic,plastic,pvc,foam,PE,PP,glass,soft metal also no problem
Machine Packing List
Packing list
1x Engraving machine
1x Control box
1x Parallel port cable 25pin
2x Power cable
1x Tool box and tools
3x Axis motors
1x CD of manual and software artcam/type3/ucancam etc
Machine detail photos:
1. Machine high quality X axis beam and gantry parts with thickness 12mm steel, long time use still very stable
2. 450B stepper motors with gear box, before delivery our engineers will inspect all installation very well to make sure no gap in movement.
3.Seperate electronic box with inverter screen control panel that can set spindle rotate manully also.
4. HQD top quality air cooling spindle 3.5kw/4.5kw/5.5kw/6kw/7.5kw for option with voltage 220v/380v
ER20 and ER25 tool chuck both no problem
5. High precision M2 rack pino with HIWIN 20 square rail for transmission to make sure cutting engraving precision better.
6. Auto Tool sensor is avaialbe
7. Oringla leadshine 860H drivers with safe high quality cables
8. Vacuum table with t-slot combination more convenient in operation and 7.5kw air cooling vacuum pump with noise reducer very useful.
This machine standard specification is T-SLOT working table and vacuum table for option

Samples
Machine cutting and engraving samples:

Packaging & Shipping
Machine Package:
Rhino CNC Machine package process:
1. Firstly machines are inspected by engineers make sure no any problem then we have special workers who are professional for machine pacakge. We use plastic film cover machnes to avoid moisture on the sea then we use strong stap to tight machine all components well like gantry,table,dust collector and control panel etc.
2.Then we will move it on the plywood bottom bracket.
3.Setting it in the proper location then use air nail to fix machine legs well on the bracket. It will take about 1-2 hours then we make a full package with plywood box.
4.Finally we use steel strap tight the whole plywood box and print shipping mark and something else as per customer requirement on outside of box. Now the whole process is finished well and it will take 2-3 hours to package it perfectly.
After Sales Service
Our Services(why choose Rhino cnc)
Guarantee & After Sales Service:
1) Two years warranty under machine normal use we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle

Company Profile
Company Information
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications


Guarantee & After Sales Service:

1) Two years warranty under machine normal use we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle
Company Information

FAQ:
Question 1: I'm interested in cnc router machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost and time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: What is the design software?

Answer: We give free Type3 and Artcam software,you can also use your own software,as long as it can transfer into G code .
Welcome to contact us if you have more requirements for above machine!
Also we can produce the cnc router according to your detail requirements!
