Tractor Pto Mounted Peanut Picker Digger Machine

Product Description

Product Description

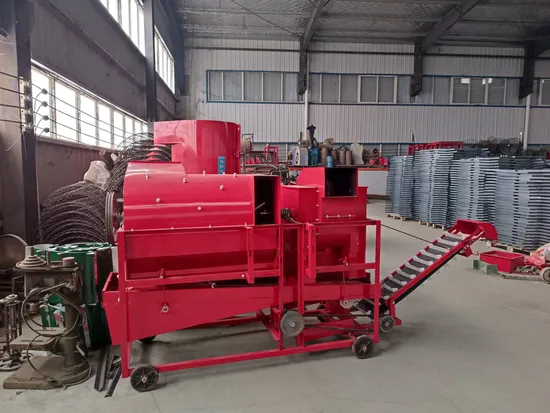

Peanut Picking Machine Description: The large peanut picker has big wheels,It can easy to move.
This groundut picker is professional for picking peanuts.
By placing the peanut stalks manually,the peanuts and straws will be automatically separated.
The leaves and grass will be discharged through the induced draft fan.
Peanut stalks are peeled off cleanly, and the cleaning rate is high.
The breaking rate is low, which becomes high quality peanuts. Product Parameters

Model	ST-1800
Power	22kw motor ,28 HP diesel engine or ≥35 HP tractor
Rotation speed of roller	550r/min
Loss rate	≤1%
Broken rate	≤3%
Impurity rate	≤2%
Capacity	1100kg/h
Inlet dimension	1100*700mm
The height from inlet to ground	1050mm
Weight	900kg
The model of separation and cleaning	Vibrating screen and draught fan
The dimension of screen	3340*640mm
Dimension of machine	6550*2000*1800mm
The diameter of roller	600mm
The length of roller	1800mm

Machine application
Installation Instructions
The advantage of the machine 1. The wet and dry peanut picker is suitable for separating the seedlings and fruits of the excavated peanut.
2. After fruit picking and selection, the flowers and fruits are clean and free of sundries. After drying, they can be directly
bagged for storage.
3. Convenient operation, reliable performance, clean fruit picking, high efficiency, less crushing, small power matching.
4. The machine can also be operated with the tractor (diesel engine) by the belt link, and the machine speed can be controlled to greatly reduce the crushing rate of the chemical production
