Paper Making Machine Vacuum Suction Rubber Roller Press Guide Jumbo Roll

Product Description

Product Description

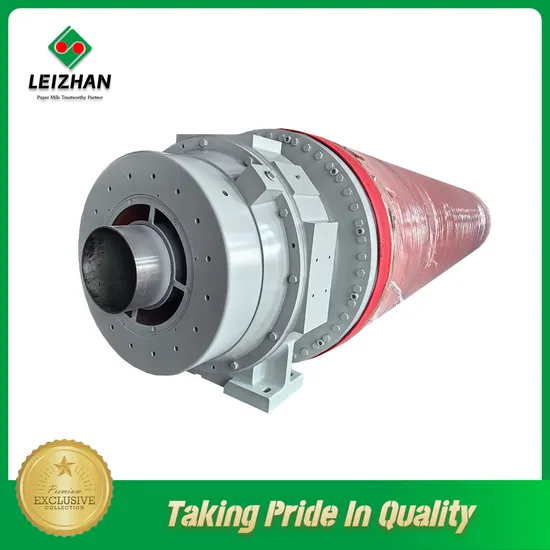

Paper Machine Vacuum Roll Vacuum suction press roll is mostly used in medium and high speed paper machines.
The function of the vacuum chamber is only to suck the air in the shell holes. The thicker the roll shell, the more air volume is sucked. Therefore, the use of high-strength metal to make a vacuum suction press roll with a thin roll shell is beneficial to improve the efficiency of press dehydration. The vacuum pressure roller shell is covered with rubber with a thickness of 30-40mm. The advantage of encapsulation is to make the pressure distribution uniform, reduce the abrasion of the felt, and increase the pressure of the press line. Production practice shows that the axial and circumferential center distance of the holes on the vacuum pressure roller is smaller, and the number of holes is larger, which can significantly improve the dehydration effect of the vacuum pressure roller, thereby effectively eliminating the embossing phenomenon and extending the service life of the felt.
Product Parameters
Vacuum Suction Press / Breast / Couch / Pick-Up Roll
Max Working Speed : 2000m/min Maximum Diameter: 1300mm Maximum Face Length: 10000mm
Leizhan Production Base
Contact us for more paper machine roller series!!!

Elements of Press roll: Shell, Journal, Bearing House, Bearing,etc
Shell :	Cast Iron or Stainless Steel
Journal:	Cast Steel or nodular Cast Iron
coating:	Rubber or PU and Blind Drill
Bearing:	S K F or F A G, etc
bearing house:	Gray Cast Iron or Nodular Cast Iron or Spheroidal Graphite Cast Iron
Elements Of Vacuum Suction Press Roll : roll body, vacuum box(single or double chamber), bearing house on DS and TS, shower pipe, air tube, regulating valve, pneumatic tire, and seal strip.
