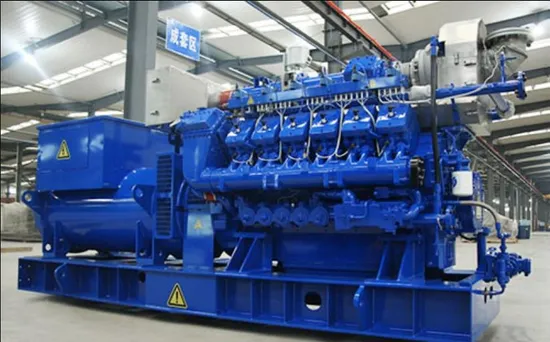

1000kw 1MW 1250kVA CNG LNG Natural Gas Generator Set
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
AJV-1000
Output Type
AC Three Phase
Gas Source
Natural Gas
Certification
CE, ISO
Power
500kw
Standard
Standard
Rated Power
1000kw/1250kVA
Rated Current
1800A
Rated Voltage
230/400V
Frequency
50/60Hz
Speed
1500/1800rpm
Regulator Brand
Madas
Gas Mixer Brand
Woodward
Water Temperature Brand
Bosch
E-Throttle Brand
Bosch
Spark Plug Brand
Torch
Alternator
Brushless Alternator
Intake Method
Turbo
Cooling Method
Water Cooling
Optional
CHP/ATS/Logo/Silent Canopy
Delivery Time
15-25 Days
Transport Package
Customized
Specification
1000kw
Trademark
AJPOWER
Origin
China
HS Code
8502200000
Production Capacity
500 Sets/Mouth
Product Description
Qingdao AJ Power Technology Co., Ltd can be traced back as early as 2004 and is composed of a number of engine and generator companies. It is mainly engaged in the research and development and production of diesel engines, gas engines, diesel generator sets and gas generator sets. The factory covers an area of 60000 square meters, including the production department, technical department, and international trade department. More than 50 employees. The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety system certification, Saudi SASO certification, EU CE certification. Diesel generator sets range from 6.5KW to 4000KW. The units are selected from well-known brand diesel engines such as MTU, Ricardo, Yangdong and other famous brands such as Stamford, Marathon and Farrand. Gas generator sets range from 2kW to 4500kW, and are divided into natural gas generator sets, biogas generator sets, liquefied petroleum gas generator sets and biomass gas generator sets. The company has self-support import and export rights, and the products are exported to foreign countries, especially the Southeast Asia, Middle East and Central Asian countries along the Belt and Road. At present, the company has established long-term and stable cooperative relations with more than 20 countries including Asia, Africa and America.| Model | AJV-1000 | |
| Rated power (kW/KVA) | 1000/1250 | |
| Rated voltage(V) | Three-phase 220/380 | |
| Frequency(Hz) | 50 | |
| Rated current (A) | 1800 | |
| Size (mm) | 4550*950*1650 | |
| Weight (kg) | 18000 | |
| Engine | Brand | AJPOWER |
| Model | TCG200 | |
| Type | Four-stroke, Water-cooling ,Inline 6 cylinders | |
| Rated Power(kW) | 1200 | |
| Rated Speed(rpm) | 1500 | |
| Cylinder No. | 12 | |
| Bore*Stroke(mm) | 170×195 | |
| Cooling Method | Water-cooling | |
| Oil Consumption(g/KWH) | ≤1 | |
| Consumption(Nm³/Kw*h) | ≤0.3 | |
| Starting method | 24V DC | |
| Alternator | Brand | PUDELI |
| Model | PDL-1000 | |
| Rated Power(kW/KVA) | 1000/1250 | |
| Efficiency | 92.5% | |
| Voltage Regulation | <=±1 | |
| Excitation mode | Brushless, Self Excitation | |
| Insulation Class | H | |
| Control System | Model | DES 6020 |
| Working Voltage | DC8.0V - DC35.0V | |
| Overall Dimensions | 266 mm x 182 mm x 45 mm | |
| Panel Cutout | 214mm x 160mm | |
| Working Condition | Temperature:(-25~+70)°C Humidity:(20~93)% | |
| Weight | 0.95kg | |
