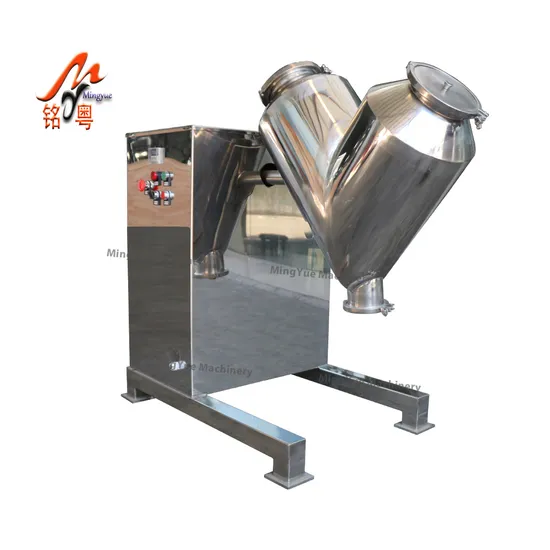

V-Mixer Mixing Machine Food Stainless Steel V Type Dry Powder Mixer B

V-Mixer Mixing Machine Food Stainless Steel V Type Dry Powder Mixer B

US$3,500.00
1-2 set
US$3,300.00
3-4 set
US$3,000.00
5+ set

Basic Info.

Model NO.
V-100/200/300/500
Application
Powder, Powder
Application Area
Pharmaceutical, Food
Certification
CE
Condition
New
Main Material
Stainless Steel
Stirring Type
Gravity
Working
Mixing
Product Name
V Type Powder Mixing Machine
Mixer Type
V-Mixer
Layout Type
Horizontal
Mixing Drum Shape
Double Cone
Operating type
Continuous Operating
Warranty
1 Year
Transport Package
Export Wooden Case
Specification
210*80*180
Trademark
MINGYUE
Origin
Guangzhou, China
Production Capacity
30set /Mouth

Product Description

Product Description 1.Application:
This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.
2.Working Principle:
the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It's high efficient.

Product Parameters

Model No Specificatio
(m3)
Total Volume
(L)
Capacity
(KG)
Rotorspeed
r.p.m
Power
(kw)
Overall dimensions
(mm)
Net weight
(kg)
V50 0.05 50 20 15 0.37 1340*600*1340 180
V100 0.15 100 50 15 0.75 1900*730*1550 320
V200 0.5 200 100 15 1.7 2100*800*1750 380
V300 0.5 300 150 15 1.8 2140×890×1900 440
V400 0.6 400 200 15 2 2200*1000*2000 500
V500 0.7 500 300 15 4 2500*1100*2100 600

Factory Workshop

FAQ
1. How long is the machine warranty?The whole machine has a one-year warranty and lifetime maintenance and aftersales services.2. Is there a instructional video?We provide insturction videos and we also support online video call instruction 7/24 service.3 What shipping service do you offer?We support fast and safe delivery services by DHL, Fedex, UPS, SF express
We also have DDP services to almost all the countries.4. Do you support samples making before placing order?We Support samples making, as long as you can manage sample materials to us, we try on our machine and take videos or we support online video call for the sample making process.
5. Do you support OEM or ODM?
Yes, we are facotry, and we have a strong RD team , we support customization for machines, and we make blueprint specific practical for your program.
