Concrete Batching Plant Equipments Yhzm60 Mobile Ready Mixed Concrete Mixing Plant

Product Description

Concrete Batching Plant Equipments YHZM60 Mobile ready mixed concrete mixing plant
Product Description

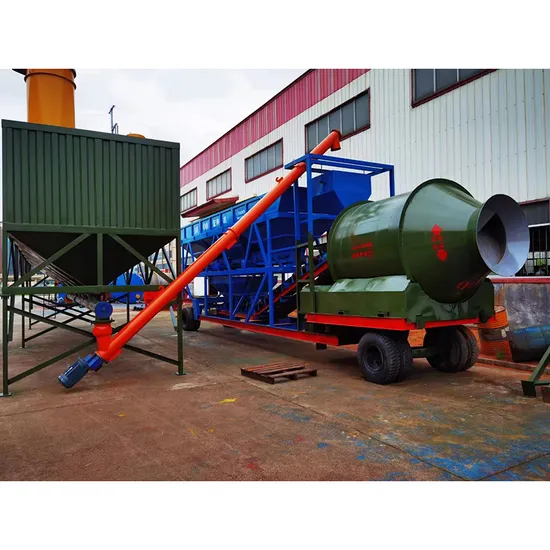

Mobile concrete batching plant is a towable mixing equipment that integrates aggregate, weighing, mixing, and transportation in one centralized towing unit. It is suitable for mobile construction of projects such as roads and bridges that require a relatively small amount of concrete.

Mobile concrete mixing station is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, unloading and automatic control system of a concrete mixing station into a trailer unit. It has all the same action processes, operation methods, and maintenance as fixed automatic mixing stations. It also has unique features such as flexible mobility, quick and easy disassembly and assembly, and simple storage and management. It is the best model for mobile construction of highway, railway, bridge, port, hydropower and other projects.
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Detailed Photos
Ready mixed Concrete Batching Plants consists
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.
The modular design to make quickly installation and relocation; the fully automatic control system to make easily
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise

Product Parameters

Model	YHS60	YHS90
Mixer	JZM1000	JZM1500
Batching machine	PLD1600	PLD2400
Delivery capacity(L)	1500	2000
Weigh the hopper capacity(m3)	3.2	4.8
Weighing value (kg)	4000	4000
Drum speed(r/min)	18	18
Aggregate size(mm)	80-100	80-100

Product Parameter
Model specification	YHZM25	YHZM35	YHZM50	YHZM60	YHZM75	YHZM90	YHZM120
Model specification	JZM500	JZM750	JZM1000	JZM1000	JZM1500	JZM1500	JZM2000
Discharge capacity (L)	500	750	1000	1000	1500	1500	2000
Feed capacity (L)	800	1200	1600	1600	2400	2400	3200
Productivity (m³/h)	25	35	50	60	75	90	120
Stirring motor power (Kw)	5.5*2	5.5*2	7.5*2	7.5*2	11*2	11*2	15*2
Water pump power (Kw)	2.2	2.2	2.2	2.2	2.2	2.2	2.2
Water supply accuracy	Error ≤ 2%	Error ≤ 2%	Error ≤ 2%	Error ≤ 2%	Error ≤ 2%	Error ≤ 2%	Error ≤ 2%
Mixer drum speed (r/min)	14-17	14-17	14-17	14-17	14-17	14-17	14-17
Maximum aggregate particle size (mm)	60/80	60/80	60/80	60/80	60/80	60/80	60/80

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are one of the largest concrete batching plant manufacturers in China. The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications
Our Advantages
FAQ

1. Are you a manufacturer, trading company or a third party?
We are a concrete mixing plant manufacturer with 15 years meanufacture experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
