High Standard Steel Profile Floor Deck Roll Forming Machine

Product Description

Product Description
High Quality Shipping Container Side Panel Roll Forming Machine- Shipping Container Side Panel Roll Forming Machine:

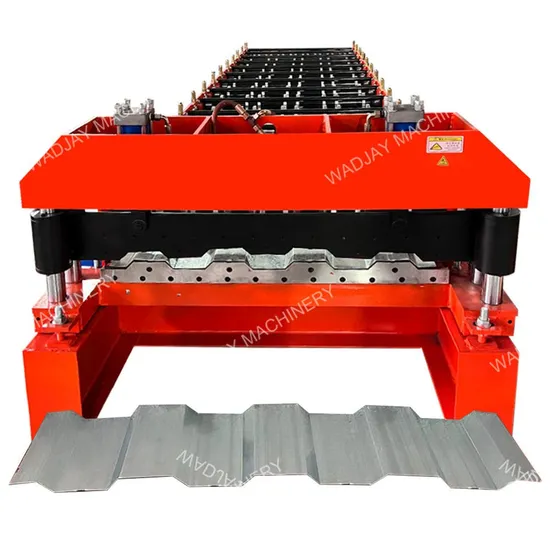

Floor deck making machinery is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.


- Details of Shipping Container Side Panel Roll Forming Machine:
- Roll former Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
- Control panel
Touchscreen roll form control system with PLC screen support and dozens of different language options.
- Specifications of Shipping Container Side Panel Roll Forming Machine:

No.	Item	Unit	Parameter	Remark
1	Material Type	mm	PPGL,PPGI	As Required
2	Thickness of Material	mm	0.8-1.2 mm	As Required
3	Material Width	mm	1220mm	As Required
4	Production Speed	m/min	8-12 m/min	Adjustable
5	Effective Width of Product	mm	1000mm
6	Drive Type	/	By Chains	As required
7	Roller Material	/	45#	Chromium plating if necessary
8	Motor Power	kw	11kw+11kw
9	Brand of Electric Control System	/	/	As Required

Packaging & Shipping
1.All export goods will be packed according to customer requirements before shipment and used in Floor Decking Roll Forming Machine.
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.


Company Profile



FAQ
Q1: How long is the warranty? A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
