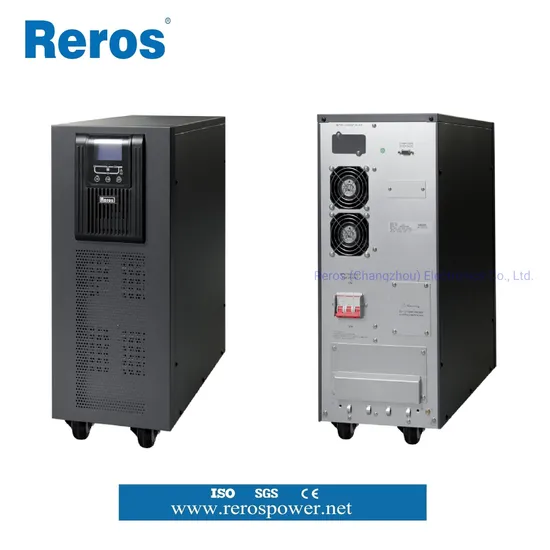

Uninterruptible Power Supply Online Transformerless High Frequency UPS 1-30kVA Single Three Phase PF1.0

Product Description

W1-3Kva&G6-130k
Product Introduction
High frequency W1-3Kva & G6-30K series is based on double conversion on-line intelligent UPS, it adopts advanced DSP digital control technology, has functions of higher output performance indicators and a number of innovative design features, is the ideal solution for small-capacity power supply scenarios, can fully eliminate all kinds of power grid problem. Support for tower installation, built-in battery. Main feature
1.Full digital control technology
2.Output power factor up to 1.0
3.LCD display panel
4.RS232 communication port
5.Intelligent SNMP+USB+EPO+dry contact (optional)
6.High power density design
7.AC/AC efficiency up to 95%
8.ECO function
Application
1.Data center
2.Network device
3.Commercial facility
4.Precision instrument
5.Home, Office and other AC power supply Specification

Model

W1KS(L)

W2KS(L)

W3KS(L)

G116KS(L)

G11/3110KS(L)

G11/3115K

G11/3120K

G11/3130K

Capacity

1kVA

2kVA

3kVA

6kVA

10kVA

15kVA

20kVA

30kVA

Input features

Voltage(Vac)

120VAC~300VAC

120-300(1/1)/266-475(3 /1)

Frequency(HZ)

45~66

Phase

Single phase

Single phase/3φ4W+PE

Power Factor

Full load ≥0.95

Full load ≥0.98

Battery voltag(Vdc)

24/36

72/72

72/96

192(16-20pcs can be adjustable)

Battery type

2*9Ah 12V/External

6*9Ah 12V/External

6*9Ah 12V/External

16*9Ah 12V/External

External

Output features

Power factor

1.0

0.8/0.9/1.0

Voltage(V)

220/230/240±1%

Frequency(HZ)

50/60±0.05%(battery mode)

Transfer Time(ms)

0

≥92%

≥93%

Waveform

Sine Wave,Linear Load THD<3%;Non-linear Load THD<5%

Overload

105%~129% full load keep 60s;130%~150% load keep 30s;Above 150% load keep 300ms

105%~125% ,transfer to bypass after 10 mins;125%~150%,transfer to bypass after 30secs;Above 150%,transfer to bypass after 0.5 second.

Crest Factor

>3:1

Output socket

EU/IEC/UK( optional)

Terminal block

Others

DC start

Yes

Backup time

Normally 5-8 mins/Long time need to depend on demands

Communication function

RS232(USB/dry contact are optional)

SNMP(optional)

Can be network monitored by SNMP adapter

Display

LED display UPS work status, LCD display UPS work parameters

Noise (dB)

<50(within 1 meter)

<55(within 1 meter)

Parallel function

No

Yes(optional)

Alarm

Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Protection

Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection.

Working temperature(ºC)

0~40

Humidity

0~95%,Non condensing

Size(D×W×H) (mm)

355×145×226

402×190×326

500×248×616(S&3/1)/500×240×460(L)

500×248×616

Weight(KG)

7/12

8/19

8/24

19/16

64/21(1/1 )30(3/1)

36

39

42

Note:
1. "L" is long backup UPS,"S" is standard UPS;
2. Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions. Pls check more cases: reros-ups.en.made-in-china.com
