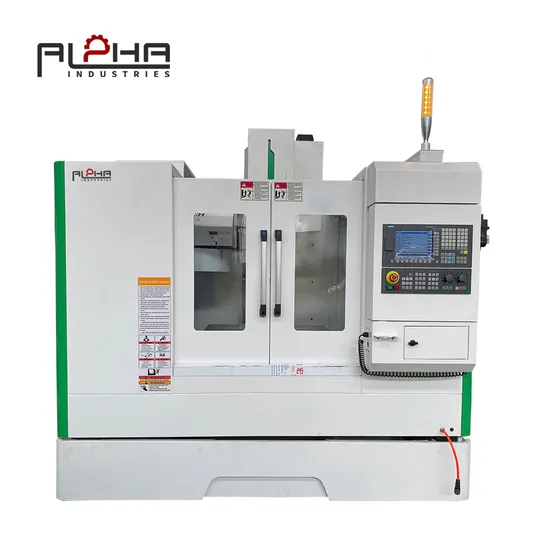

Fabricado En China Lathe Tool Vertical Machining Center Vmc600 CNC Machine

Product Description

Product Parameters

Model	VMC600
Main Motor Power KW	5.5KW
Spindle Max. Rotating Speed	Servo Spindle 8000rpm
Z Motor Torque	15N.m
X Motor Torque	6N.m
Y Motor Torque	6N.m
Spindle Taper	BT40
Worktable Size	800X320mm
Travel(Longitudinal X/Horizontal Y/Vertical Z)	600X400X450mm
Distance of Spindle Axis to Guideway Plane	350mm
Distance of Spindle End to Worktable	80-530mm
The Vertical Permissible Error of Spindle Axis to Worktable Plane	≤0.02mm
Positioning Accuracy	0.02mm
Repeated Positioning Accuracy	0.01mm
Machine Overall Dimension (L*W*H) mm	2600*1950*2400
Machine Net Weight KG	2800
System Configuration	Siemens 808D/
	GSK218/FANUC/mitsubishi M80
External Protection Level	Full Closed

Packing List

No.	Name	Specification	Qty.
1	Qualified Certificate	VMC600	1
2	Accuracy Inspection List	VMC600	1
3	Connection & Test Manual		1
4	User Manual		1
5	Packing List	VMC600	1
6	Spanner		1
7	Allen Wrench	Set	1
8	Timing Belt		1
9	Milling Chuck	BT40	1
10	Drawbar		1
11	Oil Gun		1
12	Iron Cushion		4

List of Partial Sourcing List

No.	Name	Standard Configuration
1	Ball Screw	Jiangshu qijian
2	Spindle Unit (Optional Accessories)	Taiwan Danquan
3	Electric System	Chang'an Electric
4	Oil Pump	China South Pump
5	Working Lamp	Tengzhou Sanying Electric
6	System	Siemens,Great, Huazhong, GSK and KND
7	Cylinder (Optional Accessories)	Wuxi Xieqing
8	Flange Bearings (P5)	Haerbin
9	Tool Magazine	Taiwan DYSO
10	Line guide rail	Taiwan HIWIN

Standard Accessories

Spindle unit 8000rpm	GSK 218 control system	Rigid tapping
Taiwan HIWIN screw	Adjustable block	Move the hand vein
Centralized automatic oil lubrication	External cooling system and water tank	Simple oil-water separation device
Full protection sheet metal shield and rail shield	Taiwan HIWIN linear guideway	Tubular work lights, warning lights
12 tools magazine	Spindle servo motor:	machine total power 11KW
funnel type	speed 8000rpm

Optional Accessories

System:Siemens 808D	Fanuc 0i-mf	Mitsubishi M80
16 tools magazine arm type

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
