Basic Info.
Certification
CE, ISO 9001:2000
Transport Package
Standard Export Wooden Case
Specification
2300*900*1250 mm
Production Capacity
3000 Sets/Year
Product Description

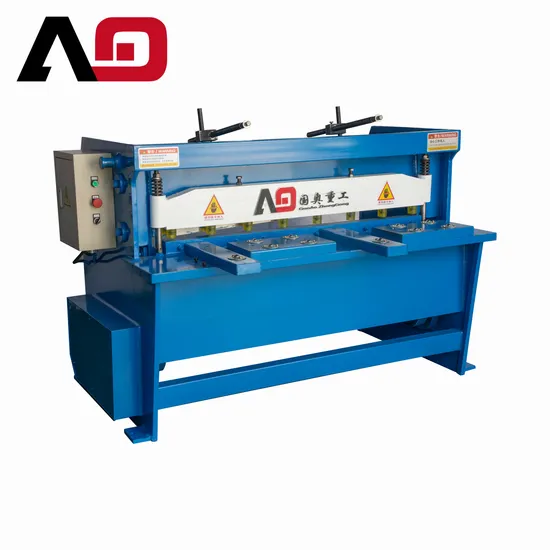

Product Description: The machine is overall steel-welded and gate-type with chain drive. The motor has its own brake, which means no power consuming when not shearing. It's suitable for processing sheet metal less than 3mm in thickness. Main Technical Parameters:
Model | Max sheet thickness (mm)
| Max sheet width (mm)
| Number of stroke (/min)
| Power (kw)
| Dimension L*W*H (mm)
|
Q11-3*1600 | 3 | 1600 | 30 | 4.5 | 2300*900*1250 |
Q11-3*2000 | 3 | 2000 | 30 | 5.5 | 2700*900*1250 |
Q11-2*2500 | 2 | 2500 | 30 | 5.5 | 3200*900*1250 |
Structure
1. Swaging beam
2. Swaging gasket
3. Dragging plate
4.Shearinf blade
5. electricity box
6. back gauge
7. shearing blade
8. Blade adjust screw
9. motor
10. Back gauge
11. Guide rail
12. Reducer
