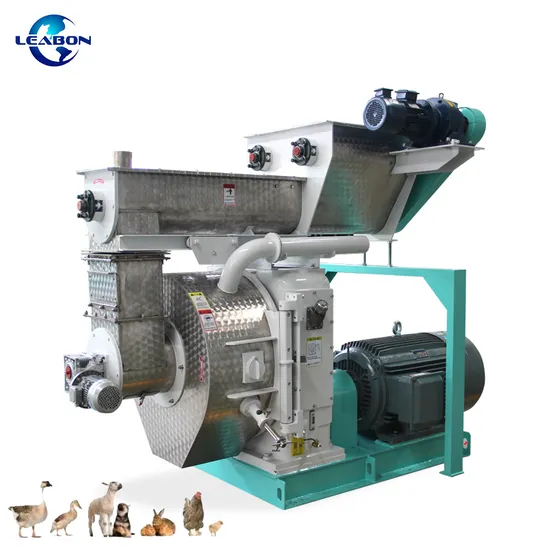

China Supplier Farm Equipment Poultry Feed Pellet Making Mill Machine

Product Description

China Supplier Farm Equipment Poultry Feed Pellet Making Mill Machine
Product Description
1).Consists of automatic feeding device, feather pushing structure2).Novel structure, promote the production and reduce labor cost.3). Multi-fucntion, easy to refit to adjust different materials.4).The screw shaft is made of alloy steel to confirm the long life.5).Equipped with automatic temperature and power controlling cabinet.6).New designed electromagnetic heating system make the extrusion more efficient, and with long service life.7).The extruded feather will be good materials for animal feed.

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Dimension(mm)
PM-200B	7.5	200-300	230	100*430*950
PM-230B	11	300-400	320	1140*470*970
PM-260B	15	400-600	380	1200*520*1070
PM-300B	22	600-800	/450	1270*520*1070
PM-360C	22	800-900	470/500	1270*520*1070
PM-400C	30	900-1100	630/660	1470*600*1150

Other Type of Feed Pellet Machine

1.CM Series
(1)CM series Ring Die feed pellet machine have international advanced level, the latest technology, low failure models.
(2)The transmission part adopts high-intensity belt transmission, which runs smoothly and has low noise.
(3)The rotating parts adopt high-quality bearings to ensure high-speed and stable rotation.
(4)The permanent magnet removal device is added to the unloading part, which increases the service life of the main components and reduces the auxiliary equipment of similar models.
(5)Easy to operate, reliable sealing, high production efficiency, low energy consumption, low labor intensity.

2.SZLH Series
(1)using new snake-like spring coupling, compensation, working more smoothly.
(2)Can match single, double, multi layer jacketed conditioning device diameter or bi axial poor conditioning meet the demand of production of high-grade livestock and poultry and aquatic products material.
(3)the machine drive system is key position of imported bearing, oil seal, long working life, low noise.
(4)the machine steel feeder, varying pitch and arch structure frequency control of motor speed control.
Product Parameters
1.CM Series

Parameter/Model	CM-25A	CM-25B	CM-30B
Output(kg/h)	1000-1200	1000-1500	1500-2000
Power (kw)	22	22	30
Feeding motor(kw)	/	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	250	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.15*1.25	1.1*1.15*1.25	1.35*1.3*1.6
Weight(kg)	625	710	960

2.SZLH Series

Model	Main power (kw)	Out-put (t/h)	Power of Conditioner (kw)	Power of screw feeder (kw)	In-side of rind die (mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Raw Material&Final Product
Application
Spare Parts
Packaging & Shipping
Company Profile
FAQ

Q1. What capacity would your need? -----The Capacity : 1-1.2T/H;1.2-1.5T/H; 1.5-2.0T/H; 2.0-3.0T/H;3.0-5.0T/H.

Q2.What is your raw material? -----suitable for different corn, soybean, alfalfa, grain, wheat, sorghum ect. .

Q3.What is your raw material size? ----Best size for pressing high quality pellets could be 6mm.

Q4.What is the moisture of your raw material? ----Better to be 12-16%.( If large than this, then we will recommend your Dryer Machine)

Q5.Final Pellets Size? ----We have Diameter for Pellets:4mm,6mm, (Different Diameters for your Different Requirement.)
