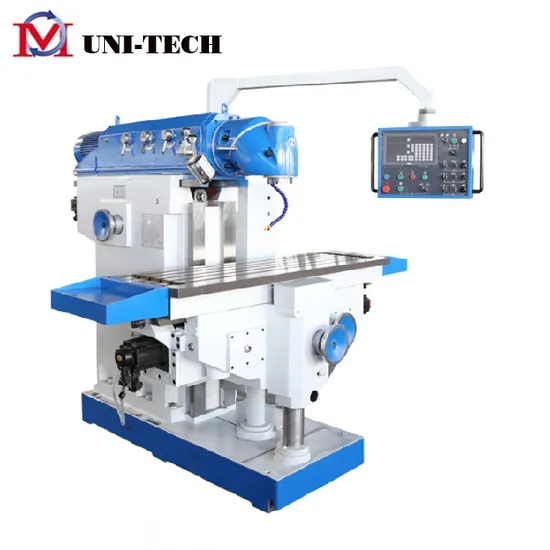

X5750 Heavy Duty RAM Swivel Head Universal Milling Machine for Metal Cut

X5750 Heavy Duty RAM Swivel Head Universal Milling Machine for Metal Cut

US$20,750.00
1-2 SET
US$20,289.00
3+ SET

Basic Info.

Model NO.
X5750
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
by Sea W/Case
Specification
2475*2260*2180mm 4000KG
Trademark
UNI-TECH
Origin
China
HS Code
845959000
Production Capacity
50set /Month

Product Description


FEATURE of X5750 Heavy Duty Ram Swivel Head Universal Milling Machine for Metal Cut
Extra large work table and wide travel ranges on all axes Rigid, torsion-proof construction with additional guide columns for constant precision when machining heavy workpieces Universal swivel head - cutter can be moved to any spatial angle Fine-stepped spindle gears for powerful machining Dynamic, infinitely variable feed and rapid feed driven by powerful, separate servo motors on every axes Preloaded ball screws with zero backlash for easy and precise feeds Precise dovetail guides on X axis, wide square guides on Z axis Swivelling control panel with integrated position indicator simplifies operation Central lubrication and LED work lamp are standard equipment
SPECIFICATION of X5750 Heavy Duty Ram Swivel Head Universal Milling Machine for Metal Cut
Specifications Unit X5746 X5750
Table size Mm 460*1235 500*1600
T-slots(NO./width/pitch) Mm 5*18*80
Table travel (X/Y/Z) Mm 900*650*450 1200*700*500
Swivel angle of milling head - 360°
Spindle taper - ISO40 ISO50
Spindle speed range R.P.M (27) 30-2050
Table feed(X/Y/Z) Mm/min 10-1000/10-1000/6-640 10-1000/10-1000/5-500
Table rapid speed 2200/2200/1100
Distance between spindle nose and table surface Mm 32-482 25-525
Distance from spindle center line to column Mm 47-697 55-755
Main motor power Kw 5.5 7.5
Feed motor Kw AC servo motor
X/Y:15NM;Z:18NM
Max load Kg 800 1800
Overall size Mm 1835*2362*2090 2475*2260*2180
Net weight Kg 3200 4000

Standard with: Drill chuck Mill chuck Reduction sleeve Wrench, Inner-hexagonal spanner Camlock Wedge shifter Spindle arbor Horizontal milling bilt Operatin manual.
Optional accessories: 3-Axis SINO DRO Universal dividing head Rotary table TSL250 Machine vice WORKSHOP:
CERTIFICATE:
International Exhibition:
PACKAGE:
FAQ:
CONTACT:
TENGZHOU UNI-TECH CO. LTD
