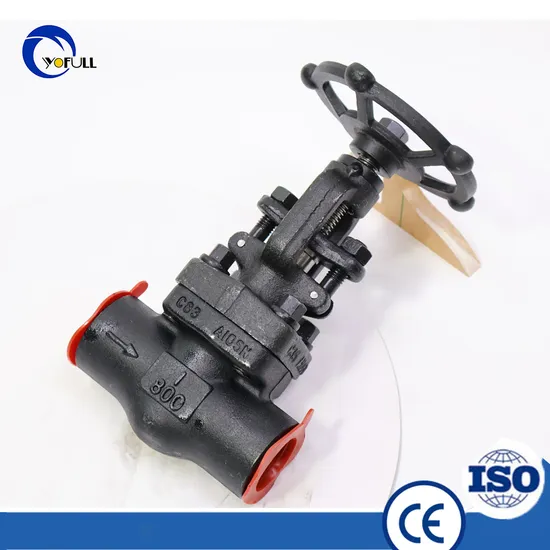

Durable A105n Gate Valve Component Kit

Product Description

Nameplate

A105/F6a

A105/F6aHFS

LF2/304

F11/F6aHF

F304(L/304(L)

F316(L)/316(L)

F51/F51

1

Body

A105

A105

LF2

F11

F304(L)

F316(L)

F51

2

Seat

410

410HF

304

410HF

304(L)

316(L)

F51

3

Wedge

F6a

F6a

F304

F6aHF

F304(L)

F316(L)

F51

4

Stem

410

410

304

410

304(L)

316(L)

F51

5

Gasket

304+ Flexible Graphite

304+ Flexible Graphite

304+ Flexible Graphite

304+ clevible Grapbit

304+ Flexible Graphite

304+ Flexible Graphite

304+ Flexible Graphite

6

Cap

A105

A105

LF2

F11

F304(L)

F316(L)

F51

7

Bolt

B7

B7

L7

B16

B8(M)

B8(M)

B8M

8

Pin

410

410

410

410

304

304

304

9

Packing Gland

410

410

304

410

304

316

F51

10

Live Bolt

B7

B7

L7

B16

B8(M)

B8(M)

B8M

11

Packing Plate

A105

A105

LF2

F11

F304

F304

F304

12

Hex Nuts

2H

2H

2H

2H

8(M)

8(M)

8M

13

Stem Nut

410

410

410

410

410

410

410

14

Locking Nut

35

35

35

35

35

35

35

15

Nameplate

AL

AL

AL

AL

AL

AL

AL

16

Handwheel

A197

A197

A197

A197

A197

A197

A197

17

Lubricating Gasket

410

410

410

410

410

410

410

18

Filler

Graphite

Graphite

Graphite

Graphite

Graphite

Graphite

Graphite

	Nameplate	A105/F6a		A105/F6aHFS	LF2/304		F11/F6aHF		F304(L)/304(L)	F316(L)/316(L)		F91/410HF
1	Body	A105		A105	LF2		F11		F304(L)	F316(L)		F91
2	Seat	410		410HF	304		410HF		304(L)	316(L		410HF
3	Wedge	F6a		F6a	F304		F6aHF		F304(L)	F316		F6aHF
4	Stem	410		410	304		410		304(L)	316(L		410
5	C a p	A105		A105	LF2		F11		F304(L)	E316L		F91
6	Pin	410		410	410		410		304	304		410
7	Packing Gland	410		410	304		410		304	316		410
8	Live Bolt	B7		B7	L7		B16		B8(M)	B8(M)		B8
9	Packing Plate	A105		A105	LF2		F11		F304	F304		F91
10	Hex Nuts	2H		2H	2H		2H		8(M)	8(M)		8
11	Stem Nut	410		410	410		410		410	410		410
12	Locking Nut	35		35	35		35		35	35		35
13	Nameplate	AL		AL	AL		AL		AL	AL		AL
14	Handwheel	A197		A197	A197		A197		A197	A197		A190
15	Lubnicating Gasket	410		410	410		410		410	410		410
16	Filler	Graphite		Graphite	Graphite		Graphite		Graphite	Graphite		Graphite
17	Set Screw	35		35	35		35		35	35		35
18	Seal Gasket	420		420	304		304		304(L)	3164)		420
19	Self-sealing Ring	304		304	304		304		304	304		316
20	Self-sealing Seat	420		420	304		304		304(L)	3164)		F91
21	Nut Spacer	410		410	410		410		410	410		410
22	Tighten Nut	Carbon Steel		Carbon Steel	Carbon Steel		Carbon Steel		Sainkess Steel	Sainless Sreel		Carbon Steel
