High Density Black Mc Nylon Rod Green Oil PA6 Rod Beige Ploymide Hollow Pipes

High Density Black Mc Nylon Rod Green Oil PA6 Rod Beige Ploymide Hollow Pipes

US$2.00-3.00 50 kgs (MOQ)

Basic Info.

Model NO.
nylon rods
Water Absorption
0.2%~0.3%
Contraction Percentage
2.0%~5.0%
Tensile Strength
51~80MPa
Dia6mm to Dia400
Lenht 1000 to 3000mm
Color
Virgin, Blue, Black
Transport Package
Wooden Box
Specification
SGS
Trademark
Haiteng
Origin
Jiangsu Yangzhong
HS Code
392099100
Production Capacity
400 Tons Per Year

Product Description

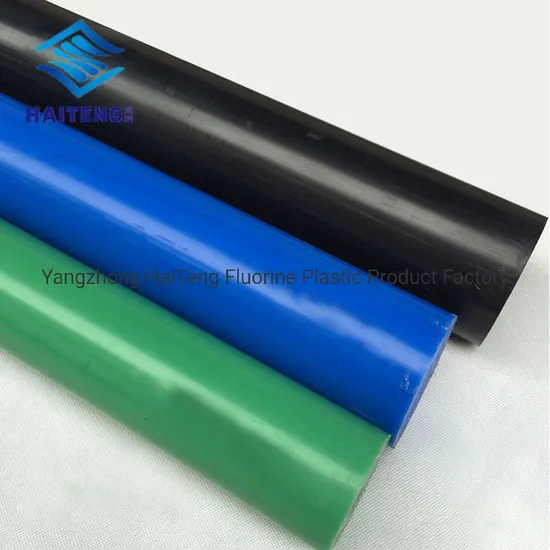

High density black mc nylon rod green oil PA6 rod beige ploymide hollow pipes
Mc nylon means monomer casting nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field. Nylon Rods specifications
Diameter (mm) 40-500mm
Length (mm) 500mm,1000mm, 2000mm
Name: MC Nylon Polyamide
Colors include: Natural white, black, blue, green, yellow and other colors
Othe Types: rod,tubes,sheets&machine parts
Characteristics
-Excellent wear resistance
-Good sliding properties
-High strength and toughness
-Self-lubricating
-Resistant to oil, weak acid and alkali
-Shock absorption
-Noise absorption
-Good electrical properties
Technical Data Sheet
PROPERTIES Unit Value
I.Physical Properties
Density g/cm3 1.15~1.2
Water absorption 24hrs % 2.5
II.Thermal Properties
Heat deflection temperature - HDT/A ºC 95
Min. service temperature ºC -30
Max. service temperature ºC 105
Thermal conductivity at 23 ºC W/(K*m) 0.23
Coefficient of linear thermal expansion 10-4*K-1 0.8
Flammability Rating(6mm thickness) - HB
III.Mechanical Properties at 23ºC
Tensile strength at yield MPa 80
Tensile strength at break Mpa -
Elongation at break % 3
Modulus of elasticity after tensile test MPa 3,300
Modulus of elasticity after flexural test MPa -
Hardness - Shore D 84
Charpy impact strength kJ/m2 N. B.
Friction coefficient 0.36
IV.Electrical Properties at 23ºC
Dielectric constant at 1 MHz 106Hz 3.70
Dielectric loss factor at 1 MHz 106Hz 0.03
Volume resistively Ohm (Ω) * cm ≥1015
Surface resisively Ohm (Ω) ≥1013
Dielectric strength kV/mm 50
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m

Images
FAQ Q1: How can I get a sample?
A1: Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: What is your payment term?
A2: Small order ,we accept by T/T,western union, paypal, .Bulk quantity order ,50T/T in advance, 50% balance before shipment. Other terms negotiable.
Q3:Can we purchase a small part of plastic sheet / rod?
A3: Yes, if we have the size you require in stock.
Q4:Can you manufacture the plastics products as per drawing?
A4: Yes,we can.
Q5:What kinds of processing machine do you have?
A5: CNC machining center,CNC lathes,Milling,Laser engraving machine.
