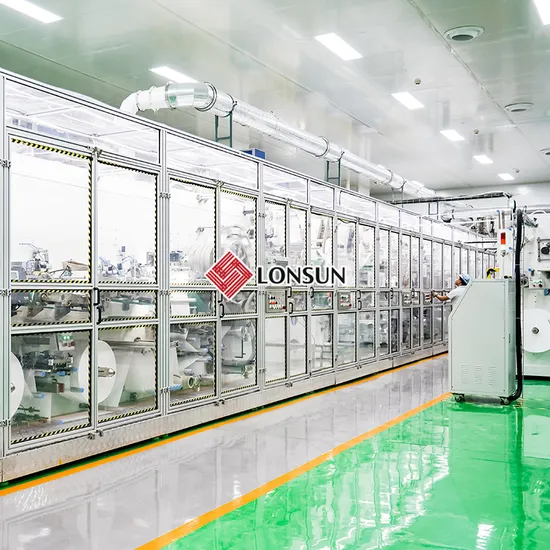

High Speed Full Servo Automatic Elastic Waistband Baby Diaper Pants Making Machine
| US$230,000.00-560,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SR-BD500
Product Object
Infant
Designed Speed
＞400pcs/min
Production Speed
＞400pcs/min
Computer Control Panel
Computer Control Panel
Product Specification
#Nb, S, M, L, XL & XXL
Automatic Grade
Full Automatic
Certification
CE
Condition
New
Voltage
360V, 50Hz
Power
360kw
Speed
500ppm
Driving
Servo Motors
Transport Package
Wooden Crates
Specification
33*8*5 (L*W*H)m (for reference)
Trademark
LONSUN
Origin
Fujian, China
HS Code
84418090
Production Capacity
40sets/Year
Packaging & Delivery
Package Size
3300.00cm * 800.00cm * 500.00cm
Package Gross Weight
41000.000kg
Product Description
| Machine Description | ||
| Machine Type | High Speed Full Automatic Baby Diaper Production Line | |
| Finished Product | regular/elastic waistband/T shape baby diaper | |
| Machine Driving | frequency control/semi-servo control/full-servo control | |
| Main Parameters | ||
| Production speed | 500/600/700 pcs/min. | |
| Power supply | 3 phase, 380V, 50Hz. | |
| Total power | 260-390KW (hot melt applicator and air compressor excluded) | |
| Overall size | 33×8×5 (L×W×H)m (for reference) | |
| Main Configurations | ||
| 1. | Frequecy motor/servo motor driving controlled by PLC with touch screen; | |
| 2. | Raw materials automatic unwinding with tension control and auto spliciing units; | |
| 3. | Raw Materials web guiding units; | |
| 4. | Single high speed cell mill; | |
| 5. | Single drum former for continuous fluff core formation; | |
| 6. | Single SAP applicator; | |
| 7. | Laminatited core (fiber cotton with SAP) unwinding and feeding units (option); | |
| 8. | Tissue paper/non-woven fabric feeding and fluffy core wrapping unit; | |
| 9. | ADL/Air-laid paper feeding & cutting units; | |
| 10. | Fluff core embossing and cutting units; | |
| 11. | 3D floating core applicator (option); | |
| 12. | Topsheet unwinding and cutting unit; | |
| 13. | Side-gather non-woven fabric unwinding and slitting unit; | |
| 14. | Spandex/elastic band unwinding and feeding unit; | |
| 15. | 3D side leakage guard applicating unit; | |
| 16. | Leg cuff applicating unit; | |
| 17. | Elastic waistband cutting and applicating unit; | |
| 18. | Backsheet lamination unit; | |
| 19. | Side tapes cutting and applicating unit; (S-cut side tapes unit option); | |
| 20. | Frontal tape positioning and cutting unit; | |
| 21. | Rotary die cutting unit; | |
| 22. | Final cutting unit; | |
| 23. | Bi-folding/tri-folding unit; | |
| 24. | Outputing unit; | |
| 25. | Stacker (option); | |
| 26. | Packing machine (option); | |
| 27. | Dust collection filter system (option). | |
