SQ55006 heavy duty mobile crane with SINO TRUCK

Product Description

HBQZ 137t heavy duty mobile crane with SINO TRUCK SQ5500ZB6 For Sale
Part 1-----PRODUCT DETAILS

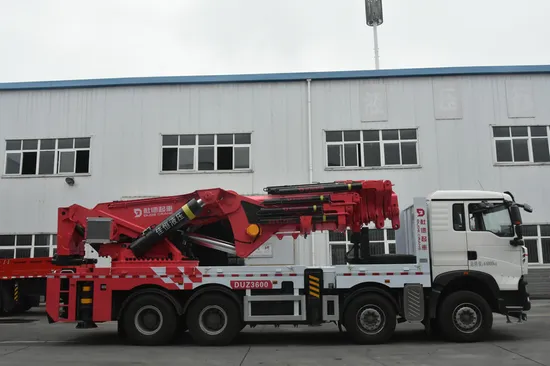

Pictures show:
Technical information:

Model #	SQ5500ZB6/knuckle crane 137ton at 4m
Max Lifting moment	5500Kn.m
Max Lifting Capacity	137000/4.0
	52000/9.5
	30000/14
	18000/18.4
Max Lifting Height	20.5m
Max Working Radius	18.4m
Boom Section	6 stages
Rotation Angle	360°All Rotaion
Rated Working Pressure	30 mpa
Oil tank Capacity	400L
Related Oil Flow	110 L/min
Outrigger Span	2170-8200mm
Outrigger	adjustable, Hydraulic operating.
Crane Weight	26000kg
Installation Space	2910mm
Swing type	Planetary gear reduction
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
Options	Aux.winch,Aux.Boom,Remote control
Material	HG785D

Truck for reference
Truck brand	Dongfeng (other truck brand can be customized)
Cabin	Driving type: 8x4, Left hand drive (Right hand drive type can be customized)
	Color is optional
Vehicle Main Dimensions	Overall size (L x W x H)	11950x2500x3800 mm
	Wheel base	1800+4600+1350 mm
	Cargo Body	6800x2350x500 mm
Weight in KGS	GVW	51000 kg
	Tare weight	14500 kg
	Front axle loading capacity	2 x 7000 kg
	Rear axles loading capacity	2 x 16000 kg
Engine	Type	Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power	371HP (273kw)
	Max Torque	1500N.m
	Emission standard	Euro II / III / VI / V /IV
Max Speed	102 km/h
Gearbox	manual gearbox with 10 forwards & 2 reverses, with PTO
Tire	12R22.5 tubeless tire, 13 pieces including one spare tire

what is heavy duty crane:
A heavy-duty crane, also known as a heavy-lift crane or a heavy-duty mobile crane, is a type of crane specifically designed to handle exceptionally heavy loads. These cranes are used in various industries, including construction, engineering, oil and gas, mining, and shipbuilding.
Heavy-duty cranes are characterized by their robust construction, high lifting capacities, and advanced features to ensure stability and safety while lifting massive objects. They are typically mounted on tracks or wheels to provide mobility and flexibility on job sites.
Some key features and specifications of heavy-duty cranes include:
1. Lifting Capacity: Heavy-duty cranes have significantly higher lifting capacities compared to standard cranes. They can handle loads ranging from hundreds of tons to several thousand tons.
2. Boom Length: These cranes often have extendable booms that can reach great heights to lift and position loads precisely. The boom can be telescopic or lattice-based, depending on the crane's design.
3. Counterweights: Heavy-duty cranes incorporate counterweights to balance the weight of the load being lifted, ensuring stability and preventing tipping.
4. Safety Systems: These cranes are equipped with advanced safety features such as load monitoring systems, anti-sway mechanisms, and computerized controls to enhance operator safety and prevent accidents.
5. Mobility: Heavy-duty cranes are typically designed for both on-road and off-road operation. They may have self-propelled capabilities or be transported using specialized heavy-haul trucks.
6. Special Attachments: Certain heavy-duty cranes can be equipped with specialized attachments, such as jibs or superlift attachments, to enhance their lifting capacity or reach.
7. Operator Cabin: Heavy-duty cranes feature spacious and ergonomic operator cabins equipped with controls, displays, and instrumentation for efficient operation and visibility.
These cranes are often utilized for large-scale construction projects, infrastructure development, erecting wind turbines, lifting heavy machinery and components, and handling oversized objects such as shipping containers or structural elements.
It's important to note that the specific features and capabilities of heavy-duty cranes may vary depending on the manufacturer and model, as different companies offer their own designs and configurations to meet various industrial requirements.
Part 2-----OUR COMPANY
HUBEI BEST CRANE CO.,Ltd is located in the central China in Hubei Province.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include a variety of special hydraulic cylinder.
After 20 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.
Our company have more than 800 units equipment for mass production.
We can product around 220 thround units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce custiomed products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
