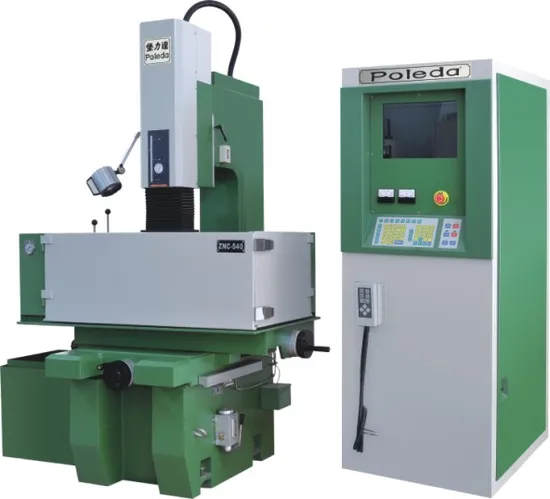

Z-Axis AC-Servo Making Sinking EDM Machine Znc-540

Product Description

Product Description
Functional characteristics of electronic control cabinet
1.The circuit design and key components of the cabinet are imported from Taiwan. The whole machine adopts three-axis optical ruler display and Z-axis numerical control to ensure accuracyThe direction of the optical ruler can be arbitrarily changed by setting the internal code.
2. It adopts the most advanced industrial control motherboard with strong function, good stability and simple operation. As long as a few parameters such as Z-axis depth are input, the matching processing parameters can be transferred from the rich expert database system, which can be automatically completed from rough processing to finish processing at one time.
3.Special MOSFET discharge circuit design is adopted, which has the advantages of fast processing speed, low electrode loss, smoother die surface and more uniform thickness. It can also process deep hole, blind hole, side and large area, and has functions of automatic slag discharge and carbon deposition alarm.
4.The color picture is composed of more than ten colors, which can be changed arbitrarily according to the operator's preference and has a more novel feeling.
5.It has the functions of metric system and English system, Chinese and English exchange, easy to operate.
Functional characteristics of electronic control cabinet.
1.The circuit design and key components of this cabinet are imported from Taiwan. The whole machine adopts three-axis optical ruler display and Z-axis numerical control to ensure accurany, and the direction of optical ruler can be arbitrarily changed by internal code setting.
2. It adopts the most advanced industrial control motherboard with strong function, good stability and simple operation. As long as a few parameters such as Z-axis depth are input, the matching processing parameters can be transferred from the rich expert database system, which can be automatically completed from rough processing to finish processing at one time.
3.Special MOSFET discharge circuit design is adopted, which has the advantages of fast processing speed, low electrode loss, smoother die surface and more uniform thickness. It can also process deep hole, blind hole, side and large area, and has functions of automatic slag discharge and carbon deposition alarm.
4.The color picture is composed of more than ten colors, which can be changed arbitrarily according to the operator's preference and has a more novel feeling.
5.It has the functions of metric system and English system, Chinese and English exchange, easy to operate.
Product Parameters
The performance characteristics of the spark machine
The performance characteristics of spark machine mainly include high efficiency, high precision, intelligence, adaptive control, a variety of shaking function, online editing function, point-to-point shift function and automatic positioning function.
High efficiency: spark machine using thin tube electrode rotation and high-speed perforation technology, simple operation, has the advantages of high perforation efficiency, high processing precision, reliable performance, stable quality and so on 1. In addition, compared with the traditional model, wire spark machine adopts automatic wiring technology, winding speed is 2-3 times that of the traditional model, quick tying device makes the coiled wires tied on the machine can be taken off easily and quickly, reduces the labor intensity.
High precision: spark machine can be used to cut the initial hole, nozzle hole, filter hole, porosity, group hole processing, showing its advantages in precision machining.
Intelligent and adaptive control: CNC spark machine has intelligent, adaptive control pulse power supply, can output better processing parameters according to different materials and processing conditions. it can continuously inspect the discharge machining state according to the given objective ( to ensure the improvement of productivity under certain surface roughness) , is compared with the best model ( digital model) , is controlled according to the calculated results and relevant parameters is obtained. With the change of the pollution degree of working fluid and chip discharge condition, machining depth and machining area, can automatically and continuously adjust the relevant pulse parameters, and can achieve the best stable discharge state with the highest productivity under the premise of constant machining quality such as surface roughness.
A variety of shaking function: sparker can realize 2D and 3D shaking processing, including free shaking, locked shaking, quadrant shaking, bottom shaking and three-dimensional shaking, is suitable for precision repair and expansion of the inner hole or cavity processing.
Online editing function and point-to-point shift function: CNC EDM can edit multiple sets of parameters while machining, effectively improve processing efficiency. can realize the point-to-point shift of each axis, just select the axis to enter the value backward, and accurate positioning. Thanks to the high resolution optical scale and full closed loop control.
Automatic positioning function: according to the predetermined requirements, input the basic parameters, by the machine automatically completed positioning mode.

Product Name
Product Name	Electric discharge machine
Product model		ZNC-450	ZNC-540	ZNC-750
	Table size	700*400MM	800*400MM	10500*600MM
Product technical parameters	Left and right stroke(X)	450MM	500MM	700MM
	Anteroposterior stroke(Y)	350MM	400MM	550MM
	Spindle travel(Z)	200MM	200MM	250MM
	Head travel	230MM	380MM	400MM
	Distance from electrode head to table surface	450MM	580MM	850MM
	Maximum electrode load	120KGS	150KGS	200KGS
	Maximum working load	1200KGS	1500KGS	2000KGS
	Machine weight (approx.)	2200KGS	2200KGS	2950KGS
	Volume of filter box	400L	460L	980L
	Net weight of filter box	150KGS	180KGS	300KGS
	Appearance dimensions (L * W * H)	1470*1150*1980MM	1640*1460*2140MM	2000*17100*2360MM
The configuration is as follows:	Accessories name and specification	quantity	quantity	quantity
	Hand oil pump	1	1	1
	Quartz working lamp	1	1	1
Standard parts for machine tools	15 "CRT display and PC industrial computer	1	1	1
	Patented electrode head	1	1	1
	Electric box remote control	1	1	1
	Operating instruction	1	1	1
	hree axis electronicruler(1u)	1	1	1
	Detail disk	1	1	1
	Control box	1	1	1
	servomotor	1	1	1
	Machine level adjustment pad	1	1	1
	Tools and toolboxes	1	1	1
