Automatic Loading Equipment Stationary Container Hydraulic Loading Dock Leveler

Product Description

Product Description
>> Electric Hydraulic Dock Leveller

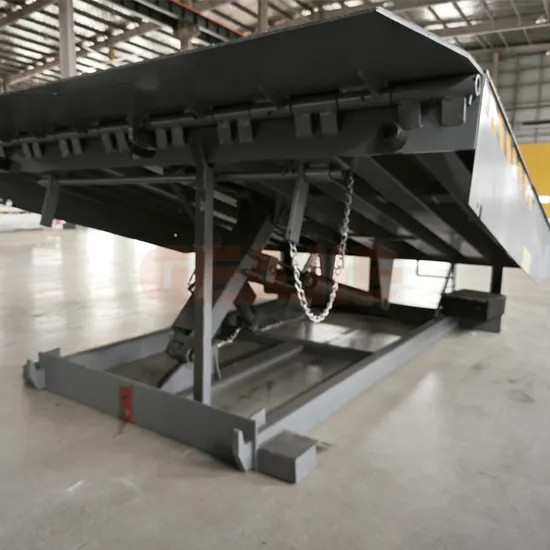

>> Product Show

Material Description
Application Environment	Logistics unloading port
Load	Load capacity 6-25 tons
W	1830mm,2000mm,2130mm
L	2000mm,2500mm,3000mm,3500mm
Size	customizable
Lip plate	Standard 400mm, 500mm optional
Lip style	Standard tongue plate, T-shaped tongue plate, three-section tongue plate
Countertop structure	It adopts 8mm high-strength anti-skid pattern steel plate and adopts different bottom reinforcement structures according to different load capacities.
Lip thickness	High-strength anti-slip pattern steel plates with thicknesses of 14mm, 16mm, and 20mm are selected according to different load capacities.
Hydraulic power unit	Swiss Bucher Hydraulic System
Power supply	380V/0.75Kw
Security configuration	Platform anti-fall function, anti-pinch safety protection, through-type maintenance support rod, night self-locking protection
Color	Black, gray, blue, green, other colors customized

>> Structural Drawing

Structural Components
1. Mould	12. Seeger straight pins of the lip
2. Hydraulic control unit	13. Stright Pin body of the body
3. Upper plate	14. Right foot guard
4. Left foot guard	15. Flange fixing - upper plate cylinder
5. Control unit support	16. Upper plate rotation pivot
6. Swinging lip	17. Seeger upper plate rotation pivot
7. Left short shaft	18. Stright Pin body of the upper plate
8. Shaft fixing pins	19. Upper plate cylinder
9. Right long shaft	20. Upper plate cylinder shaft pin
10. Cylinder of the lip	21. Seeger upper plate cylinder pins
11. Pin of the lip cylinder rod

220V.1PH.50HZ	Non-standard load, sizes, colors	Galvanized treatment
Dual hydraulic lifting system	Brush/Vinyl Seal	Lip with side flaps
Open type hinge	500mm long tip board,600mm depth base pit
Interlocking between sectional door and locked vehicle setting

>> Similar Products
>> Product Advantages
Type: Dock levelers are available in various types, including hydraulic, pneumatic, and mechanical.
Each type has different operating methods and features to accommodate different loading and
unloading requirements.
Material: Dock levelers are typically made of durable steel to ensure their load-bearing capacity
and long-term durability.The steel is often treated for corrosion resistance.
Load capacity: Dock levelers have varying load capacities depending on the model and specifications.
They can be designedand manufactured to accommodate different load requirements, from light
goods to heavy industrial equipment.
Operating method: Dock levelers can be operated manually or through automated control systems.
Some dock levelers are equipped with buttons, switches, or remote controls for convenient lifting
and lowering operations, enhancing efficiency and safety.
Safety features: Dock levelers are typically equipped with safety devices such as anti-slip surfaces,
safety barriers, and safety sensors to ensure the safety of personnel during loading and unloading
operations.
Adjustability: Some dock levelers have adjustable height features to accommodate different heights
of trucks and docks,ensuring a smooth connection and loading/unloading process.
Accessories and options: Dock levelers can be equipped with various accessories and options according
to specific requirements, such as side rails, transition ramps, wheel guides, etc., providing additional
functionality and convenience.
These product details may vary depending on the manufacturer and model. Specific product details
should be confirmed based on the specific model and specifications.
Company Profile
>> Company Informations
Q1: What is your MOQ?
A: 1set is OK.
Q2: What is the max available size of the doors?
A: The max length can be 6.5M. The max width is 6M, adjustable.
Q3: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce sliding doors, rapid doors, garage doors, rolling shutter doors, cold storage
doors, loading and unloading platforms, door seals, and car locks, industrial fans and other series
of products. We produce parts by ourselves in order to control quality and cost.
Q4: How to install your product, is it difficult?
A: Very Easy to install.
Q5: Which place will use the dock leveler?
A: Factory outlet, Outgoing port of logistics park.
Q6: What's effect of dock leveler?
A: Improve the efficiency of cargo handling, easy to unloading and loading goods.
Why Us:
Excellent quality and Competitive price, OEM is available.
Widely professional exporting experience all over the world.
Our Service:
Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries professional in English.
Working time: 24 hours on line.
OEM is highly welcomed.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
Suggestion:
Please kindly check the packages after you receive the goods, if you got wrong
products/ quality problem/ short q'ty, please get back to us as priority. Please
note that you need to send us pictures of the defective items concerning this,
and we will consider to replace or refund accordingly.
