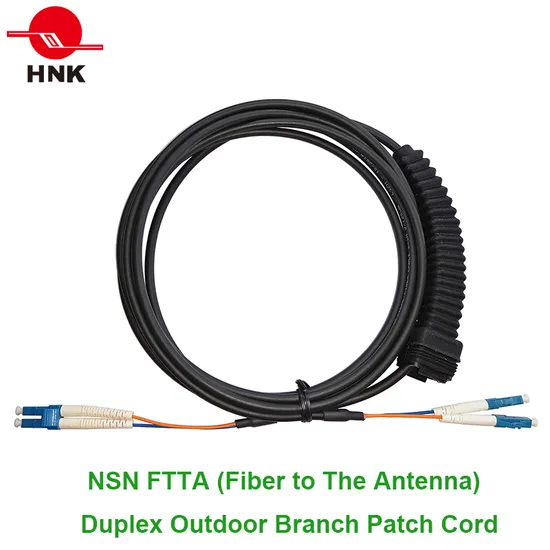

Nsn Duplex LC Arbitrary Bending Connector 5.0mm Ftta Patch Cord

Product Description

NSN FTTA Duplex Outdoor Branch Patch Cord is made of GYFJH type fiber optic cable. The cable has small diameter,
light weight and thick wall jacket protection, giving it versatile applications.
NSN FTTA Duplex Branch Patch Cord for the new generation wireless base stations pulled far tailored products that can
be meet the FTTA (fiber to the top of the tower) program requirements for outdoor environment conditions and adverse
weather conditions.
Standards Compliance
. Telcordia GR-326-CORE Generic requirements for Single mode
optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. Comprehensive wiring standard: ANSI/TIA-568-C.3,
ISO/IEC 11801 2nd Ed., CENELEC EN 50173,
. Cable flame resistant rate:OFN or IEC60332-3 standard
. RoHS Compliant Directive 2011/65/EU
Features
. The cable is soft, flexible, onvenient laying.
. Suitable for riser, duct, horizontal and vertical cabling.
. Thick wall outer jacket and E-glass gives more excellent tensile strength,
mechanical, rodent, ultraviolet and environmental protection.
. Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
. Patch cord will be produced to different kind of connectors
and different length according to the construction need.
. Optional high tensile strength armoured tube for protecting
Φ2mm outdoor branch cable, custom lengths.
. Optional LC 90 Degree connector or LC arbitrary bending connector.
. 5.0mm or 7.0mm cable diameter (available upon request)
Mechanical, Environmental & Material Data

Items	Specifications	Items	Specifications
Fiber Type	Singlemode or Multimode	Connector Style	SC, FC, ST, LC
Polish or Ferrule Interface Type	PC, UPC, APC	Cable Lengths	Custom Lengths
Fiber Count	2	Branch Cable Lengths	Custom Lengths
Cable Parameter
Outer Jacket Material	LSZH	Outer Jacket Color	Black
Strength Member	E-glass	Outer Jacket Diameter(mm)	7.0±0.1 (or 5.0±0.1)
Crush(Long term)	1100 N/100mm	Crush(Short term)	2200 N/100mm
Min Bend Radius(Dynamic)mm	30D	Min Bend Radius(Static)mm	15D
Maximum Tensile Load(Long term)	200N	Maximum Tensile Load(Short term)	400N
Sub-unit Parameter
Sub-unit Color	Orange, Black (available upon request)	Sub-unit Material	LSZH
Sub-unit Diameter(mm)	2.0±0.1(or 1.6±0.1)	Strength Member	Aramid yarn
Storage Temperature(°C)	-40°C to 75°C	Installation Temperature(°C)	-40°C to 75°C
Operating Temperature(°C)	-40°C to 75°C

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.2dB Max. (0.15dB typ.)			0.3dB Max. (0.25dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	PC≥35dB
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)			0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N			≥98N

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: NSNPC-AA-BB-CDE
Ordering Guide

AA	BB	C	D	E
Connector Type	Connector Type	Fiber Type	Cable Length	Branch Cable Length
FP, SP, SA, LP	FP, SP, SA, LP	OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 G652D=9/125 G652D, G657A=9/125 G657A	003=3M 020=20M 100=100M	02=0.2M ... 10=1M

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC

Ordering Sample

Part Number	Description
NSNPC-LP-LP-G657A30005	LC/PC-LC/LPC NSN FTTA Duplex Outdoor Branch Patch Cord, Singlemode G657A, 300M, Branch Cable 0.5M.
