Good Quality Small Machine to Produce Maxi Roll Paper Towel Production Line

Product Description

Good Quality Small Machine to Produce Maxi Roll Paper Towel Production Line

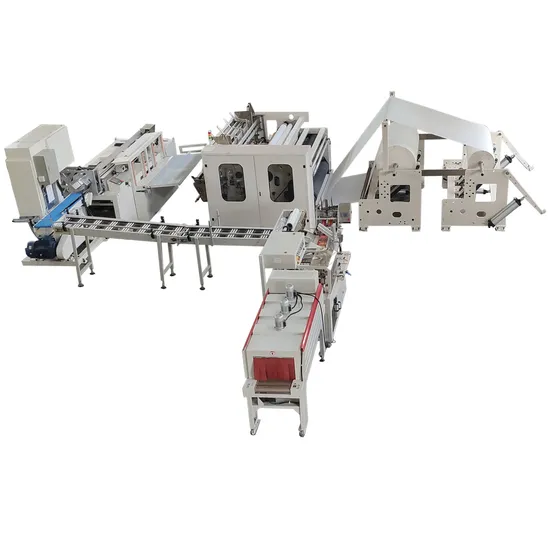

Description of the equipment: XY-TQ-A-H Good Quality Small Machine to Produce Maxi Roll Paper Towel Production Line is full-automatic production line, which composed of 1 set of XY-TQ-B Full-automatic high-speed rewinding maxi roll paper machine,1 set of XY-AI-500 automatic maxi roll band saw cutting machine and 1 set of automatic maxi roll shrink packing machine.
For paper width up to 2800mm to make bathroom tissue. Equipped with variable perforation length system to satisfy any length need. The speed of this rewinder is up to 220m/min, 3 cycles per minute, including:
★One steel to rubber or steel to wool embossing units. One perforating unit.
★Two or three back stands, with a double or three belt driving system, for jumbo rolls up to 1200mm diameter, and with a pneumatic loading of jumbo roll system.

XY-TQ-A-H
Parent roll width	1750mm--2800mm
Parent roll diameter	Up to Φ1200mm
Core inside diameter of parent roll	Φ3"(76.2mm)or as requested by customer
Machine speed	200-230m/min depending on model
Finished roll outside diameter	Toilet paper:Φ90-110mm
Perforation pitch	Variable, any size needed
Sheet count	Increments of one sheet
Inner diameter of core of finished product	Φ40-76mm
Quality of raw material	1 or 2 plies ,14-20g
Installed power	15-30Kw
*Please point other specifications

Details of each machine:
XY-TQ-B Full-automatic High-speed Rewinding and Perforated Toilet Paper Machine
Description of the equipment:
XY-TQ-1575B this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 140-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m (92B type) and 1.75m(75B type) in width. There are two types of this model: one is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectably for each one.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.
The production process is: Unreeling - Embossing - Perforating-Rewinding- Tail-gluing- Edge trimming---automatic core loading.
Technical data:

Machine Model	1092	1575	2000	2200	2400	2600	2800
Width of jumbo roll (mm)	1200	1750	1950	2150	2350	2550	2750
Finished Products Diameter	Φ80~280mm (Tightness can be adjustable)
Finished Products Inner Diameter	Φ40-76 mm
Jumbo roll diameter (mm)	Φ1200 (Other sizes please point out)
Jumbo Roll Inner Diameter	76.2 mm (other sizes please point out)
Perforation distance (mm)	4 blade,90~120mm; 2 blade,180~240mm;
Production speed	200-230 m/minute
Parameter set	Touching-screener Multi-menu Man-machine Interface Operation System
Controller	PLC program
Mechanical driving	Driven by stepless regulator to guarantee the precise length of final products.
Air pneumatic system	3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Power	10kw-30kw (380V 50Hz)
Overall size (L×W×H)	6200X2750X1800 mm
Weight of equipment	About 4.2T
Chosen items (Should be ordered separately)
Embossment	Single embossment, Double embossment, Edge embossment
Embossment down roller	Paper roller, rubber roller
Jumbo roll stander	1-3 plies
Printing unit	Single color heliotype printing unit
Other special request for machine is welcome

XY-AI-500 Automatic maxi roll band saw cutting machine
Function and features:
1.The main motor using the inverter independent drive.
2.For one set of machine, the cutting diameter of paper roll is adjustable as 150~250mm.
3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.
4.The grinding system is equipped with an independent dust removal device to ensure the working environment.
5.The band saw adopts hydraulic tension system to ensure the tension of band saw.
6.It will be automatic stop and alarm when the knife is broken.
7.High precision servo system is used to ensure the quality of finished products.
8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
9.The device stops working and prompts the interface when the input data is wrong.
10.Using band saw for cutting and reduces the cost of use of users.
11.The thickness of finished paper core should less 3mm(Suggestion)
er, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.
Main technical parameter:

Cutting speed	15-30cuts/minute
Cutting channel	single channel
Cutting blade	band saw blade(18,000--20,000 rolls/blade)
Cutting blade size	5180*100*1.05
Log length	<=2200mm or <=2850mm
Tolerance	±2mm
Cutting length	<=300mm
Cutting diameter	100-300mm(Adjustable)
Thickness of paper core	<=3 mm
Power supply	15KW 3 phase 4line 380V 50HZ
Machine weight	2700KG
Overall size of machine	4600*2350*2200mm(2.2m jumbo roll) 5300*2350*2200mm (2.2-2.85m jumbo roll)
Separated size	Main machine: 4600*1700*2200mm(2.2m jumbo roll) Paper storage: 1500*1650*900mm
	Main machine: 5300*1700*2000mm(2.2-3m jumbo roll) Paper storage: 1700*1650*900mm

XY-TN-269 Automatic maxi roll shrink packing machine
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
Technical Data:

Model	4525L cutting and sealing machine	4525 temperature shrink machine
Power source	220V 50Hz/60Hz	380V 50/60Hz
Rated Power	1.35KW	9.6KW
Sealing Size	L550*W450MM	450*220*120mm
Packing speed	20-40 Packs /min	10-15m/min
Packaging Size	L450 x W400 x H120 MM	450*220*120mm
Machine size	L1500×W750×H1360mm	L1600×W700×H1300mm
Weight	300KG	150KG

Packing and delivery time
FAQQ: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer one-years guarantee for free and all life maintenance.
We will deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city. Company information:Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)3) Facial Tissue Machine (2-8 output lanes)4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)6) Pocket Tissue Machine(mini and standard size)7) All kinds of Tissue Paper Cutting and Packing Machine8) Another Household Paper Equipments and Production Line.If you need more information about these machine,please feel free to contact me!
