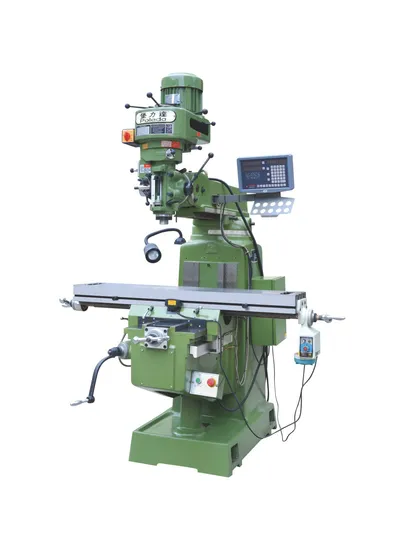

4m High Precision Vertical Turret Milling Machine Factory Direct Sales

Product Description

Product Description
A milling machine is an indispensable machine tool in the realm of metal cutting, renowned for its versatility and precision. Utilizing a rotating tool, it adeptly cuts material on machined parts, making it a staple in metal processing. This multifaceted tool excels in processing planes, surfaces, and gears, while also being proficient in drilling, reaming, and boring operations.
Basic structure of milling machine:
The basic structure of the milling machine encompasses several key components: bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor, and more. Each element is meticulously designed to ensure maximum efficiency and precision.
1. Bed: The bed serves as the foundational support structure of the milling machine, carrying various integral components. Typically cast for superior stability and rigidity, the bed ensures a robust foundation for all milling operations.
2. Slide table: The slide table is a critical moving component of the milling machine, capable of sliding back and forth on the bed. Equipped with a workbench and a horizontal shaft, the slide table facilitates precise positioning and processing of machined parts through its dynamic movement.
3. Workbench: The workbench is the operational platform of the milling machine, designed to grip and secure machined parts. It offers rotational and tilting capabilities, enabling the execution of complex machining tasks with ease. Machined part processing.
Product Parameters
Structural Characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other main components are crafted from high-strength materials for superior durability and resilience.
Enhanced by artificial aging treatment, ensuring the long-term stability and reliability of the machine tool.
2. The milling head is equipped with a turret milling head, offering both manual and micro feeding methods for convenient and precise processing.
The milling head can adjust ±45° in the vertical plane and 360° in the horizontal plane, significantly expanding the machine's machining range.
3. The vertical and horizontal tables support three types of feed: manual, mobile, and mobile fast feed. The mobile feed offers 8 different feed speeds.
This versatility meets various processing requirements, while the fast feed quickly positions the workpiece, minimizing non-machining time.
4. The lifting platform's Z-axis can be elevated manually or automatically, with interlocked mechanisms to eliminate unsafe factors.
5. The table's X direction travel extends up to 800mm. X, Y, Z guide pairs undergo ultra-audio quenching, precision grinding, and scraping treatments.
These treatments enhance precision and significantly prolong the machine's service life.
6. A manual lubrication device ensures that the longitudinal, horizontal, and vertical lead screws and guide rails are efficiently lubricated, minimizing wear and maintaining efficient machine operation.
The cooling system allows for adjustable coolant flow via nozzle adjustments, catering to various processing needs.
7. The machine's operating system is ergonomically suspended on the upper right side via a support arm, making it easy to operate.
The operation panel features intuitive figurative symbols for straightforward and simple use.
8. The turret milling machine spindle options include R8, NT30, and NT40, enhancing versatility.
9. Equipped with an upgraded electrical box and controller, featuring 110V and 220V output sockets for improved functionality.

Product Name	Milling machine
Product model	3M/3S/4M/4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	740MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	360MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
	Table bearing	300KG
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	Three-axis screw diameter	Tr32mm
	Three-axis lead screw pitch	5mm
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your specific requirements for color, logo, and other features. For standard items that we have in stock, the MOQ is just 1 set.
2.How do you ensure the quality of your products?
A. We place immense emphasis on maintaining high quality levels. Our core principle is to providecustomers with superior quality, competitive pricing, and exceptional service.
3.What are your company's main products?
A. We specialize in a wide range of machines, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A. Ex-works, FOB, CFR, and CIF are all acceptable.
5.What are your Payment Terms?
A. T/T, 30% initial payment upon order, and 70% balance payment before shipment.
6.Which CNC systems do you use?
A. We use FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice is yours.
7.How can I choose the most suitable machines?
A. Send us your product drawings and application details, and we will recommend the most suitable machines for your needs.
8.What kind of packaging do you offer?
A. Typically, we use plywood cases to ensure all goods remain in excellent condition. Customized packaging is available upon request.
9.Can your plant handle OEM?
A. Yes, we can provide OEM and ODM services for any customer.
10.How about the warranty?
A. The warranty period is one year after delivery. Beyond this period, we offer lifetime service for the machines.
