High Quality Hard Case Book Maker Binding Machine, Book Case in Machine

Product Description

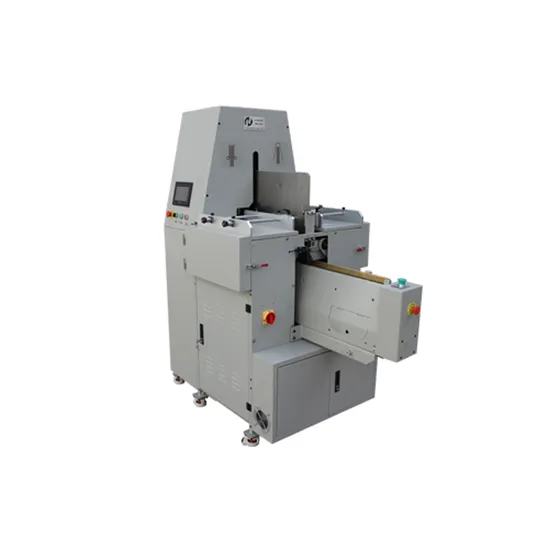

High Quality Hard Case Book Maker Binding Machine, Book Case In Machine

Product Name	ZM-SSK360A Hardcover Photo Book Binding Machine
Max Book Size	360*360mm
Min Book Size	90*60mm
Max Thickness	5-65mm
Glue Area	360mm
Production Speed	720 Books/H
Voltage	220V/380V
Weight	570KG
Dimension	1620*1050*1850mm

Main Feature
ZM-SSK360A Casing-in Machine Input the length and thickness of the book blocks, and the casing- in will be processed automatically. Input the length and thickness of the book blocks,and the casing- in will be processed automatically. Input the length and thickness of the book blocks by touch screen,and change different size of books in seconds. PLC control system, more convenient than manual adjustment and setup. High speed optaical fibre detect the position of the book blocks,autonomous control and running. Provide Auto mode, manual mode and inching mode. Double guide rails to convey the book blocks accurately and steadily. Multi-point linkage design, easy to operate and ensure safety. Equipped with high load casters, convenient to level adjusting,fixing and moving the machine. Suitable for making multispecies and short to medium run of hard cover books and photobooks.
Both side uniformly gluing, end papers pasting and casing-in automatically with high consistency and rate of finished porducts.
Easy to adjust the thickness of the glue and books. Description ZM-SSK360A Casing-in machine Casing-in the book blocks and hard covers perfectly. Suitable for making multispecies and short to medium run of hard cover books and photobooks. Both side uniformly gluing, end papers pasting and casing-in automatically with high consistency and rate of finished porducts. Easy to adjust the thickness of the glue and books. According the length and thickness of the book block, PLC control system adjusts the casing-in position, glue position and dwell time automatically. Running speed, mode switch (Auto/manual/inching) and quantitative water filling can be set by touch panel. Optical fibre detects the book blocks, directive slide track and unique hard cover position mode ensure the machine stable and easy operation. The base of the machine is equipped with high load bearing footmaster casters, which is convenient to level adjusting, fixing and moving the machine.
