Rubber Oil Seal Gasket Cutting Machine

Product Description

Rubber Oil Seal Gasket Cutting Machine
Name: Rubber Oil Seal Cutting Machine
Model: Single shaft
Descriptions
Rubber Oil Seal Gasket Cutting Machine with Servo motor control, high efficiency and stability, high cutting precision. it is used for cutting all kinds of rubber and silicone rubber tubular products to gaskets.
Technical parameters
Double shaft rubber ring cutting machine :

Cutting frequency	>50pcs/min
Working speed	0~2000r/min
cutting precision	≤±0.05mm
Cutting outside diameter	Φ10mm~Φ120mm
Cutting length	≤200mm
Cutting thickness	≤12mm
Compressed air consumption	50L/min
Air pressure	0.5MPa~0.8MPa
vacuum degree of work	≤-0.035MPa
Total power	750W
weight	≈500Kg
dimension(L×W×H)	1600mm×960mm×1580mm

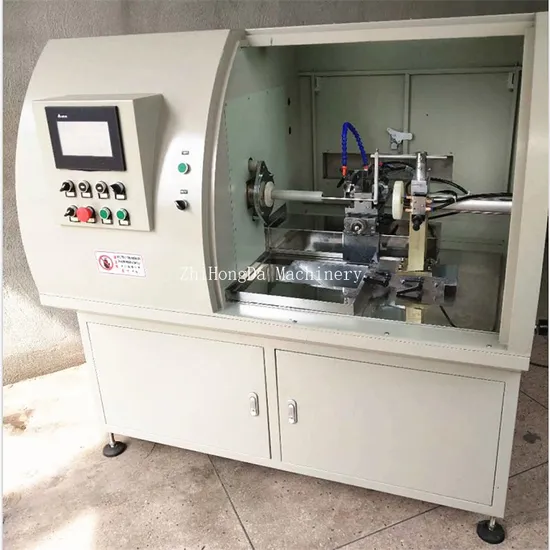

Products pictures
Accurate cutting, error up to 0.04mm:
Products Features
The product after cutting is the finished product directly, the appearance is beautiful without flying edge, do not need to be trimmed twice. The program is controlled by Chinese and English interface, users can switch at will, input parameters can work automatically. Servo motor control, high efficiency and stability, high cutting precision. With automatic water circulation system to protect the cutter. Automatic unloading after cutting, saving time and effort.
If you are interested in our cutting machine, please contact us at any time.
We will answer you quickly.
Hope we can establish good business relationship with you.
Thanks for your time and attention.
