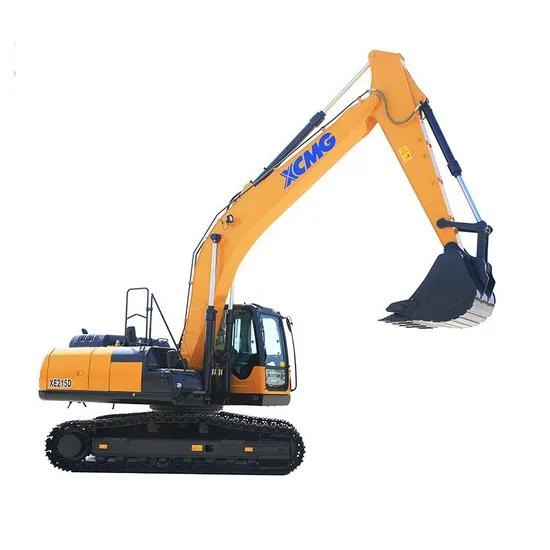

Crawler Excavator Xe215D 20 Ton Crawler Excavator Machine Price

Product Description

1,The maximum traveling speed is up to 5.4km/h to realize faster site transfer speed.
2,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
3,Low-speed and high-torque custom, fully electronically controlled engine in accordance with excavator working conditions, torque reserve increased by 15%.
4,the industry's first large-displacement high-efficiency pump, the displacement increased by 13.6%, the power increased by 4.5%.
5,High-efficiency large displacement motor, the rotary motor increases the displacement and increases the rotary torque of the whole machine by 12.1%;
6,Fully-controlled high-pressure common rail engine technology, fuel utilization increased by 5%.

Model		Unit	XE215C	XE215CLL	XE215D
Operating weight		kg	21450	22350	21900
Standard bucket capacity		m³	0.93	0.5	1
Engine	Engine Model	/	CC-6BG1TRP	CC-6BG1TRP	QSB7
	Rated power/speed	kw/rpm	128.5/2100	128.5/2100	135/2050
	Max. torque/speed	N.m	551/1600	551/1600	740/1250
	Displacement	L	6.494	6.494	6.7
Working range	A Max. digging height	mm	9640	13250	9620
	B Max. dumping height	mm	6800	10942	6780
	C Max. digging depth	mm	6655	11690	6680
	D 8inch horizonal digging depth	mm	6470	---	6500
	E Max. vertical wall digging depth	mm	5695	11200	5695
	F Max. digging reach	mm	9925	15394	5715
	G Min. swing radius	mm	3530	4835	3530
