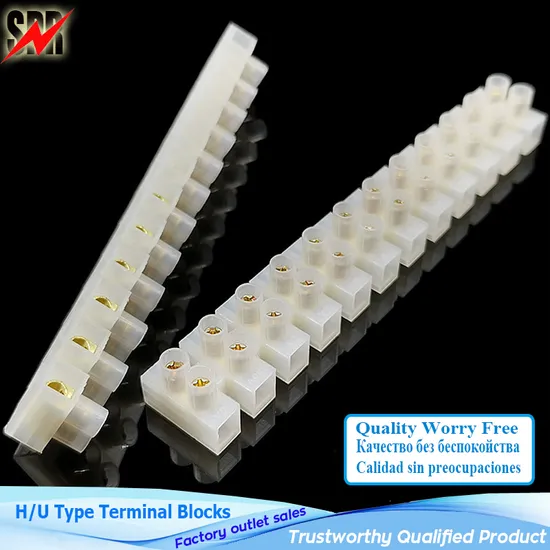

Top Quality 3A-150A H Type/U Type PE PP PA Terminal Blocks, Terminal Connectors
| US$0.177-1.779 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
3A-150A
Application
Conduct Electricity, Transmission of Electrical Signals
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
U
Interface Type
AC/DC
Certification
BS, VDE
Brand
Tianze
Transport Package
300PCS/CTN
Specification
Int′l Standards
Trademark
OEM
Origin
China
HS Code
8538900000
Production Capacity
100000PCS/Week
Product Description
| Material: | PA PP PE |
| Certificate: | CE IP68 SGS |
| Usage: | Collecting the wires |
| Color: | Natural/black |
| Working Temperature: | -40ºC-100ºC |
| Delivery time: | Shipped in 7 days after payment |
| Payment terms: | T/T,Western Union, L/C |
| -PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, & anti-radiation. -Working Temperature: -40ºC~65ºC -Brass, screw is iron, which is plated zinc. -Voltage: 250V~450V -Colour: Natural colours as standard. | -PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce, impact force. -Working Temperature: -20ºC~90ºC -Brass, screw is iron, which is plated zinc. -Voltage: 250V~450V -Colour: Natural colours as standard. | -PA, Polyamide 66, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce, impact force. -Working Temperature: -30ºC~110ºC -Brass, screw is iron, which is plated zinc. -Voltage: 250V~450V -Colour: Natural colours as standard. |
| Amper | L | W | H | A | B | mm² | VOLT | AMP | PACKING |
| 3A | 91 | 15.5 | 12.5 | 5.5 | 8 | 4 | 400V | 3A | 10PCS |
| 5A | 109 | 17.5 | 14.9 | 6.5 | 9.5 | 6 | 400V | 6A | |
| 10A | 129.5 | 21 | 15.8 | 6 | 11 | 10 | 400V | 10A | |
| 15A | 137 | 22.7 | 18.2 | 7.5 | 12 | 12 | 400V | 16A | |
| 20A | 137 | 22.7 | 19 | 9.5 | 12 | 14 | 400V | 20A | |
| 30A | 162 | 24.8 | 20.5 | 10.5 | 14 | 16 | 400V | 30A | |
| 60A | 190 | 30 | 25.5 | 14 | 16.5 | 25 | 400V | 60A | |
| 80A | 204 | 36.7 | 29 | 15.5 | 17.5 | 35 | 400V | 80A | |
| 100A | 230 | 39 | 33 | 16.5 | 19.5 | 40 | 400V | 140A | |
| 150A | 253 | 44 | 36.5 | 21.5 | 21.5 | 45 | 400V | 150A |
