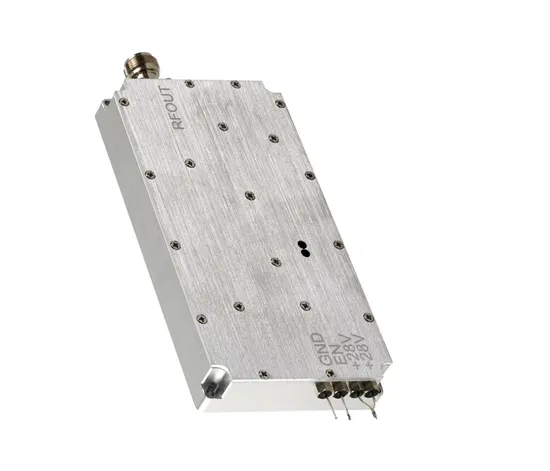

Drone Jammer Module 580-700MHz 100W Power Amplifier
| US$298.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
580-700M
Support Network
GPRS
Information content
Data
Certification
ISO
Condition
New
Transport Package
Carton Packaging
Specification
150X80X23mm
Trademark
jw
Origin
China
HS Code
8543904000
Production Capacity
1000pieces/Year
Product Description
100W Module Technical Datasheet1.RF DATA
| Item | Spec. | Remarks | |
Frequency Range | 580-700MHz | Bandwidth Range±10MHz | |
| Working Voltage | 28V | 24-30V | |
| Analog sweeping speed | 200K(default) | 50 KHz-300Kcustomizable | |
| Output Power (Max) | ≥50 dBm | 100W | |
| Gain (Max) | 47±1 dB | ||
| Ripple in Band | ≤ 3 dB | Peak | |
| Bandwidth adjustment | Yes | By screw | |
| Center adjustment | Yes | By screw | |
| Enable control | Yes | 24-28V | |
| Output VSWR | ≤1.5 | ||
High Low Temperatu re test | Working Temperature | -20~+65ºC | Working properly |
| Gain Stability | ±1 dB | at -20ºC~+55ºC | |
| Power stability | ±1 dB | at -20ºC~+55ºC | |
| Working current | ≤10A @+28V dc; | CW output 100W | |
Power supply Port | Positive and negative lines | 24-28V; GND | |
| RF output connector | SMA-Female | ||
| LED indicator light | Power ON/OFF | ||
| Dimension | 150*80*23 mm | ||
| Installation Dimension | 144*74*23 mm | ||
| Screw Size | 4-Ø3.20 mm | ||
| Weight | 590g | ||
2. Size
Schematic diagram
