Jlh9200 Two Color Fabric Air Jet Loom Brocade Panels Project

Jlh9200 Two Color Fabric Air Jet Loom Brocade Panels Project

US$9,000.00
1-7 Pieces
US$8,000.00
8-17 Pieces
US$7,000.00
18+ Pieces

Basic Info.

Model NO.
jlh9200
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Speed
850~1000 r.p.m.
Reed Width
150-360cm
Warp Density Range
15~150pick/Inch
Weft Density Range
6~100pick/Cm
Cotton Yarn Range
8′s- 80′s
Cloth Roller
Normal/Jumbo Package
Edge
Selvage Edge/Tuck-in Selvage
Nozzle
2/4/6
Warp Beam Flange Diameter
800mm, 1000mm
Weft Insertion
Set Weft Storage, Main Nozzle, Any Weft
Transport Package
Export Standard Packag
Specification
CE, ISO9000
Trademark
JLH
Origin
Shandong China (Mainland)
HS Code
84463050
Production Capacity
500 Sets/ Per Month

Product Description

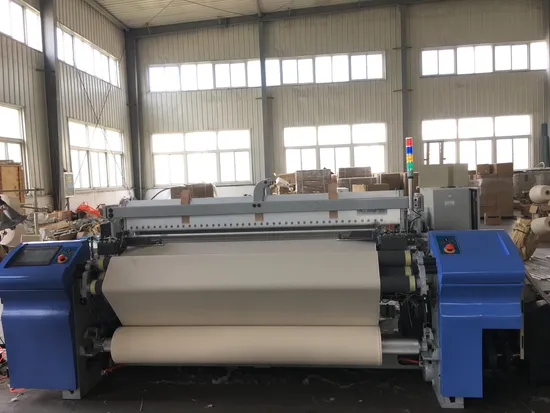

Jlh9200 190-360cm working width Air Jet weaving Machine for Cotton Fabric
If you were new, we can support you by sending our engineers to your place, help you finish the whole production line
Advantages:
Save power consumption,reduce the air consumption
We use energy-saving nozzle & reed
WBS efficient application
Efficient air route design
Stable air saving method
High speed,running stably
Canonical material standard
Stable machine,working center move down
Optimal transmission ratio design
Crank type balanced beating,to make sure the beating strength,and reduce shake.
Weaving scope:
high count yarn,high density,high quality fabric cloth
Raw material:
combed yarn 7s-80s ,silk, polyster yarn

Respective fabric:
fabric width above 280cm,to make home textile,curtain,bed sheet,quilt cover fabric width below 230cm,to make denim

Standard configuration:
electronic let off and take up,cam shedding,electronic feeder double nozzle
Width optional:190 230 280 360
Respective machine:
Reed wdith:280cm
Shedding :cam
Electronic feeder:2 nozzle
Single warp beam
Electronic let-off and take-up
Motor:3.0kw
Air consumption:0.8---1.2(different fabric,defferent air consumption)
R.P.M:600
Packing
Delivery time:20 days after confirm order
Shipment:2 sets per 40 HQ container
Our company
Our company, Qingdao Jinlihua Textile Machinery Co,.Ltd has been exporter of textile machinery many years.
Cutting-edge technology to build high-tech products, quality service helps us establish a world- class brand. Each month we can product 300 sets at least.
15 years' experience, we can provide high grade service, and be your trusted textile machinery expert.

Why us
-Good performance and high quality machine,with good price.
-A talented engineers team releasing new model every years . Customized design is available;
-We offer engineers available to service overseas under merchandiser's supervision and translation;
-Passed ISO9001,CE, SGS quality system;
-Abundant Customers from India, Bangladesh, Turkey, Uzbekistan and China etc, highly satisfied with our product. Because of low cost, good performance and advanced model;
-Working with us, you can lower your cost for premium weaving loom, as we are factory direct and have the economy of scale.
