Family Car, Train, Taxi, School Bus Seat Occupancy Sensor, Seat Pressure Sensor

Family Car, Train, Taxi, School Bus Seat Occupancy Sensor, Seat Pressure Sensor

US$2.00-5.00 10,000 Pieces (MOQ)

Basic Info.

Model NO.
VCG
Material
PVC
Position
Car Mount
Leatheriness
Car Mount
Car Make
All Car Brands
Baby Seat Brand
All Car Brands
Condition
New
Material Surface Thickness
0.188mm
Output Signal
Resistance<100Ω
Film Thickness
0.5+-0.1mm
Bottom Glue
Pet 3mdouble-Sided Glue
environment Temperature
-15°c-80°c
Permanence
>150000
Transport Package
Carton Packing
Specification
180*86*150mm
Trademark
VFTest
Origin
China
HS Code
9026209010
Production Capacity
2000000pieces/Year

Product Description

Product Description

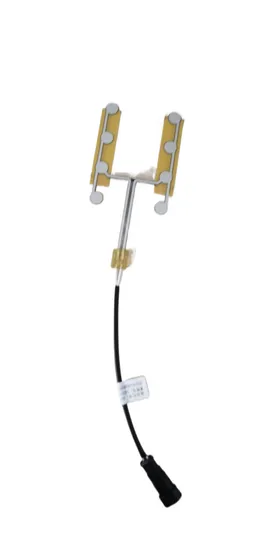

This sensor is popular used by car seats and taxi seats. It can recognize when person on the seats. It's a pressure sensor, also called touch point sensor. Some bus passenger seats also can use this kind of sensor for occupancy application.
Function Seat pressure
Packing 50pcs/box
MOQ 100pcs
Payment Term T/T,Paypal,WU
Trade Term EXW,FOB,CIF
Certificate CE and ISO
Sample Available for testing
Performance Parameters Table
Parameter Condition Sign Numerical Value Unit
Min Max
Working Voltage U working 0 20 V
Working Current I Working 0 50 mA
Non-trigger resistance value No load Rx=R No load 10.0K Ω
Trigger resistance value Bearing body Rx=R Trigger 0 100 Ω
Insulation impedance No load Rx=R No load 10 20 MΩ
Specification
Material PC
Material surface thickness 0.188mm
Output Signal Resistance<100Ω
Film thickness 0.5+-0.1mm
Bottom glue PET 3MDouble-sided glue
Enviroment Temperature -15°C-80°C
Permanence >150000 Time
Pressure range single-spot test(Special Poise) 70g 100%non-conducting
130g 100%conducting
Connector Seal gum
To match as the seat

Why choose us
1) We can provide you with different types of seats and seat parts for your selection.
2) Small MOQ: 100pcs,mixed order acceptable, welcome trial order.
3) We can provide samples for your test.
4) Safety, on-time delivery, excellent quality with competitive price.
5)OEM &ODM service available.
