High-Precision Beam Steel Cutting and Drilling Machine for Structural Fabrication

Product Description

H Beam Cutting Robot Product Description

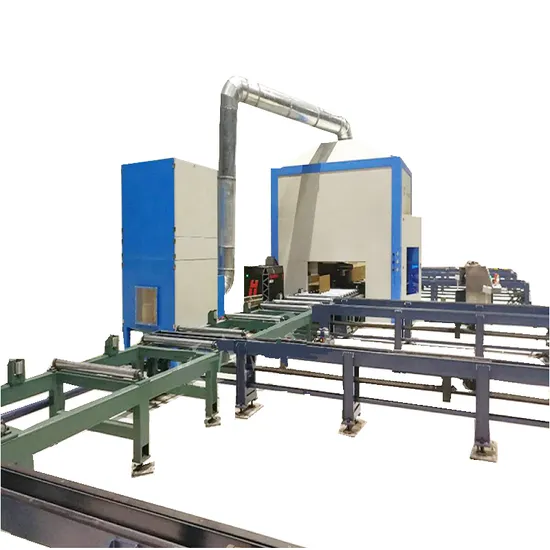

KR-XH H beam cutting robot (consist of cutting unit, materials storage rack, input conveyor roller bed,automatic uploading material system, gripper and liner rails, output conveyor roller bed and finished products rack system) .
The materials from material storage rack, automatic uploading to input conveyor roller bed, then the material-feeding device push materials from input ruller bed direct to cutting unit under the direction of liner rails and gripper. When complete cutting,workpieces direct expension to the output conveyor roller bed, then the 4 groups trolley will transfer the workpieces to the finished products rack finally,finished whole cutting.

Material	Carbon steel , stainless steel ,aluminum
Type	H beam, I beam,U beam, L beam
Industry	Especially for steel structure construction, warehouse fabrication, shipbuilding, marine engineering, web structure, building walls, bridges, towers and mechanical engineering industries. ( Below photo for your reference )

Product features
1, Achieve Various complicated cutting process: Cut off, bevel, bolt holes, rat holes, slotting, mitter cut ,Notches,Shallow block coping , cut to length…etc.
2, Completely replace band saw, drilling line operation, highly improve production efficiency. Overlap Treatment of profile small angle roots.Profile Rat hole cutting &Lock Coping.
3, Complex cutting process, our software are compatible.
4, The perfect Butt-lock between profiles, control weld seam to ensure product quality and appearance.Installation hole and threading process hole one-time processing.
5, Support angle and channel steel cutting.
6, Solve various shapes of cutting.
7, arbitrary process drawing can be cutting Off-line software programming.WINCOO Teklapipe has a strong profile marking function
8, Combined with Hypertherm plasma power marking tool, complete auxiliary line, weld line and part number mark.
9, Completely replaces the artificial line, avoids the lofting error to cause the repair, guarantees the entire project manufacture progress.
10, Integrated Tekla software, WINCOO teklapipe profile nesting , Profile control system and plasma power combination.

Product Parameters

NO.	Item	parameter
1	H beam, I beam , Channel beam , Angel beam	Length: 12m ,feed in 12m feed out 10m Web width: 100- 1000mm ; 60- 400mm
2	Cutting method	Plasma/ Oxy-fuel
3	Plasma source	Hypertherm XPR 300A High definition plasma source
4	Plasma cutting thickness	Vertical cutting 35 mm,
5	Oxyfuel cutting thickness	Vertical cutting 60mm,
6	Bevel angle	±45° by plasma ,± 60 by flame
7	Cutting length deviation	±1.5mm
8	Shapes cutting	According to the drawings confirmed by both parties (provided all at the time of technical agreement signing) Can marking ,cutting off ,cut all shape ,)
9	Control axis	X axis:cutting torch along workpiece front and back moving axis
		Y1 axis:cutting torch along workpiece right and left moving axis Y2 axis: cutting torch along workpiece right and left moving axis
		Z axis:cutting torch up and down moving
		A axis:cutting torch rotation axis
		B axis:cutting torch swing axis
		C axis:matereial feeding axis
10	Cutting speed	10~2000mm/min
11	Moving speed	10~6000 mm/min
12	Load capacity	Max.6000Kg
13	Cutting process	Cut off, bevel, bolt holes, rat holes, slotting, mitter cut ,Notches,Shallow block coping , cut to length
14	Require gas flow of plasma	4500L/H
15	The acceptable temperature around	-20ºC -50ºC
16	Voltage	Machine :220/380V ,50/60HZ
17	Types of gas	Plasma :Air , Flame :Oxygen+Acetylene /propane
18	National cutting standard	ISO9013-2002\ISO8206-1991 \JB/T10045.4-1999JB
19	Laser sensor device	Keyence from Japan ( World famous brand ) To inspect the error of the beam ,and follow the cutting route new function added

Detailed Photos
After Sales Service
We will provide one-year warranty and support online and offline technical support.If you need, we will send engineers to help you.
