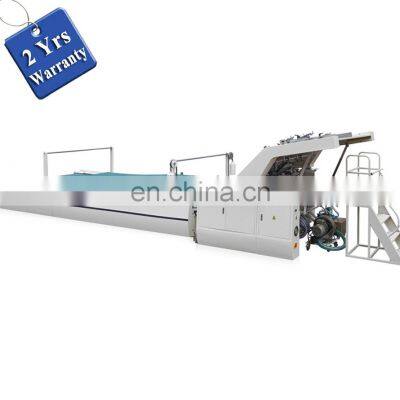

BZ1450B High Table Semi Automatic Corrugated Flute Paper Laminating Machine

Product Description

Product Description
BZ1450B High Table Semi Automatic Corrugated Flute Paper Laminating MachineVideosVideo demonstration only for referenceVideo Link 1: /watch?v=YcGMzI9_mxoVideo link 2: /watch?v=V6i9odjYkTkProduct Description Description:This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating. Characteristics:1, Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking2,The humanized design that manually feeding from the front makes delivery more easier and efficient3,Entire new concept front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.4,Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm5,The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;6, The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.7, Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.8, Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick9,Control of water tank cleaning cycle using an independent method, clean, hard rubber product;10,Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating; Color top sheet 175-500g and grey cardboard paper laminating Parameter:ModelMax SizeMin SizePowerLamination SpeedTop Sheet WeightWeightMachine SizeBZ-1100B1100×1100mm400×400mm8.7kw0-153m/min120-500GSM3500kg7×1.7×1.8mBZ-1300B1300×1200mm400×400mm8.7kw0-153m /min120-500GSM4500kg7×1.9×1.8mBZ-1450B1450×1200mm400×400mm8.7kw0-153m/min120-500GSM5000kg7×2.0×1.8mTop Paper Sheet: 120-500GSM, Bottom Board: A/B/C/E/F Corrugated Carton Thickness less than 8mm Detailed Images Service Team Pre-sale Service After-sale Service A: Inquiry and consulting support A: English manuel and video instruction B: Sample testing support. B: Your technians can get trained in my factoryC: Invoice and Contract confirmation. C: Engineers available for overseas if necessaryFAQ1.Q: What information should i let you know if i want to get a quotation?A: Detailed size of your finished products in Max and Min?B: Paper thickness in GSMC: Some photos of your finished products2.Q: Are you a manufacturer?A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter. 3.Q: What about the payment term?A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..4.Q: What is the warranty?A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)5.Q: What is your aftersale service?A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..6.Q:What is the delivery time?A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required. PACKING CONTAINERContainer Load and Transport Contact UsYOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE. Mobile/Whatsapp/Wechat: +86-18258286679 Email: utecs@ , utecsinter@ , danielsuer@ Skype: danielsuerWeb:
