Aerial Working Platform Hydraulic Scissor Lift Equipment (11m)
| US$3,400.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJY0.45-11
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001, QC Issued by Gov.
Max Platform Height
11m
Max Working Height
13m
Platform Size
2.45*1.35m
Rated Load
450kg
L*W*H
2.25*1.35*1.60m
Weight
1380kg
Voltage
380V/50Hz
Motor Power
3kw
Delivery Time
15 Days or Rush as Requested
Warranty
12 Months Apart From Man-Made Faults
Transport Package
Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
Specification
Manganese steel
Trademark
BOONAI
Origin
Xiangcheng District, Suzhou
HS Code
8428909090
Production Capacity
50 Units Per Month
Product Description

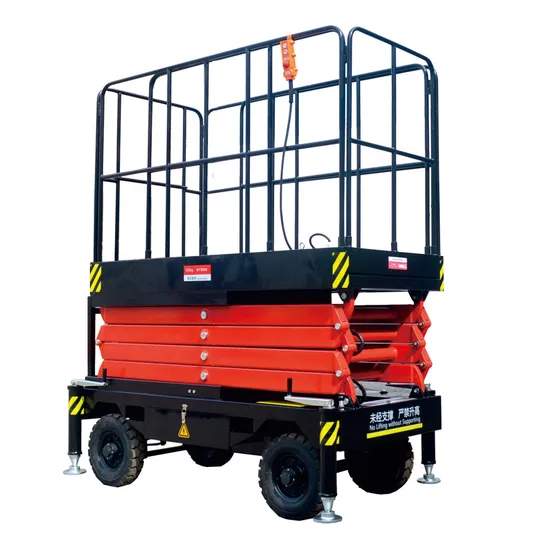

Mobile Scissor Lift (Economic Type):Application:Aerial working with heavy loading
Max height of platform:6m,7.5m,9m,11m,12m,14m,16m for option.
Features:
1.Made of Manganese steel, enabling heavy loading
2.Scissor mechanism provides high stability when lifting
3.More than one operator could be carried simultaneously with equipped large platform
4.Mainly used in station, dock, plant and construction site for aerial working in case of machinery installation, equipment and building maintenance
Standard Configuration:
1.AC380V
2.Emergency Lowering valve
3.Leveling device with supporting screw
4.Waterproof electric box
5.Emergency stop button
| Parameters | |||||||
| Model | SJY0.45-6 | SJY0.45-7.5 | SJY0.45-9 | SJY0.45-11 | SJY0.45-12 | SJY0.45-14 | SJY0.45-16 |
| Max Platform height(mm) | 6000 | 7500 | 9000 | 11000 | 12000 | 14000 | 16000 |
| Min Platform height(mm) | 980 | 1250 | 1500 | 1600 | 1700 | 1800 | 1980 |
| Platform Size(mm) | 1800*900 | 1800*1000 | 1800*1000 | 2100*1150 | 2450*1350 | 2450*1350 | 2800*1500 |
| Rated Load(kg) | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Lifting times(s) | 54 | 72 | 83 | 88 | 90 | 120 | 145 |
| Voltage(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Motor Power(Kw) | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 5 |
| Overall length (mm) | 2000 | 2000 | 2000 | 2250 | 2600 | 2600 | 2950 |
| Overall width (mm) | 1080 | 1200 | 1200 | 1350 | 1550 | 1550 | 1750 |
| Overall height (mm) | 980 | 1250 | 1500 | 1600 | 1600 | 1800 | 2180 |
| Extended outrigger size(mm) | 600 | 700 | 700 | 700 | 700 | 800 | 850 |
| Over weight(kg) | 650 | 1100 | 1260 | 1380 | 1850 | 2500 | 2700 |
• Company Certificates
• Part or Customers
• Packing
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.
