Commercial Automatic Fast Color Change Easy Cleaning PP Powder Coating Spray Booth

Product Description

Commercial Automatic Fast Color Change Easy Cleaning PP Powder Coating Spray Booth
This powder coating line is specially designed to provide quality powder coating process.
It consists of automatic powder coating booth with reciprocator and automatic powder coating gun,powder recycling unit,powder supplying hopper,conveyor unit and control panel.
Product Description

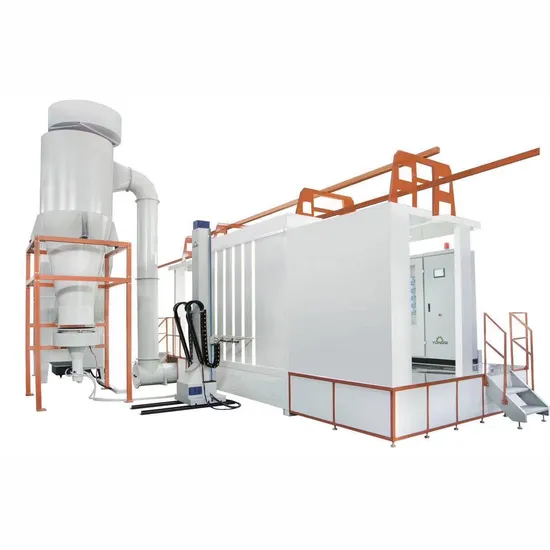

Mono-cyclone automatic powder coating spray booth with powder recovery system
Multi-color application powder booth system designed with cyclone recovery tends to maximize cleaning efficiency during color change, reduce downtime while increase powder recovery.
Mono-cyclone spray booth is one of the most critical components of the spray powder change color process, this multi-level cyclone separator configured double grades recycling to recycle more powder and eliminate powder leakage.
Product show:
Product Parameters

Booth Type	Mono-cyclone
Operator dimensions	W0.8*H2*D6m
Overall dimensions	Customized
Weight	1000kgs
Power supply	Electric
Nominal power	15KW
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	16pcs
Filters hang type	easy for change
Filter cleaning system	Pneumatic
cyclone	Mono cyclone
Rotation wing self-cleaning cartridge filter unit	1set
fliud hopper	1set
Warranty	12 months

Product advantage
1. Multi-Cyclone recovery system ensures extremely high levels of powder recovery 98% .
2. Higher life of cartridge filter with unique rotary wing cleaning mechanism.
3. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
4. Faster color change: the bottom of the booth prevents accumulation of the powder and makes it very easy for cleaning and quick color change.
5. There's air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.
6. Booth material can be made anti-static engineering plastic, which reduces powder waste.
