Woodworking 200ton Hydraulic Wood Plywood Woodendoor Panel Veneer Hot Press Lamination Machine

Product Description

Technical Paremeters

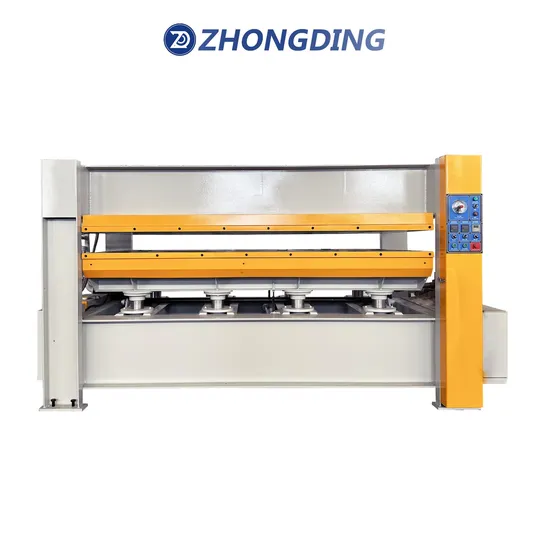

ZD214 120 TON HOT PRESS MACHINE
Using the method of hot oil circulation heating and the upper pressure of the oil cylinder, the processed object is placed between the fixed hot pressing plate, the movable pressing plate and the middle hot pressing plate, and the gluing is carried out in a hot state.

Model	ZD214
Total pressure (Ton)	120ton
Platen No & size(mm)	1300x2500x42 mm
Overall dimension	2950*1300*2350mm
Opening(mm)	80-150 mm
Workinglayer Numbers(Customized)	1/2/3/4
Cylinder No &Diameter (mm)	6xФ100mm
Heating way	electric heated with conduction oil
Hot platen open way	automatically
Closing speed(mm/s)	40 mm/s

Product Details

All 3 pumps we use Vane Pumps.The others use Gear Pumps.Vane pumps with lower noise than noise than gear pumps.So the working life is longer than gear pumps.
The cylinders we use are with seals to prevent oil leakage.
The surface roughness of our platen is 0.8μm.The better among the others is just 1.6μm.This will keep the heating averagely.This is very important.
Easy operated control panel
Application

Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
