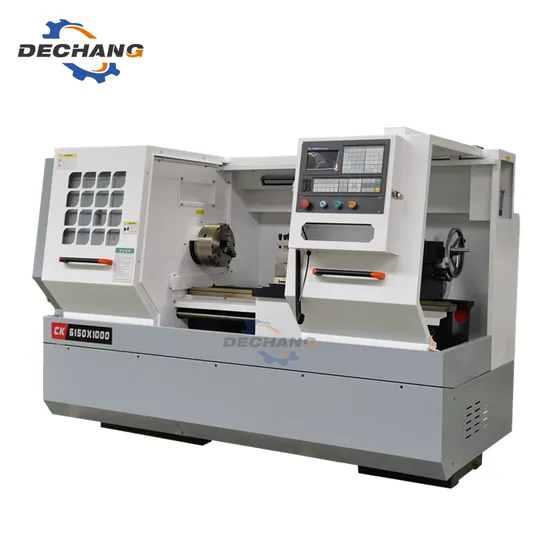

High Quality Flat Bed CNC Lathe Machine Ck6170 Horizontal Cheaper CNC Lathe Machine Price

Product Description

High Quality Flat Bed CNC Lathe Machine CK6170 Horizontal Cheaper CNC Lathe Machine Price
Standard configuration:
360mm bed width,
4 station electric tool post
Spindle hole 52mm
Manual chuck, manual tailstock
Low-high 2 steps speed
GSK control system
Optional configuration:
Hydraulic chuck,
Hydraulic tailstock,
6/8 station electric turret,
Spindle hole 80mm,
Siemens/ Fanuc control system
Independent spindle
Servo main motor.
Auto chip conveyor
SPECIFICATIONS

SPECIFICATIONS	Units	CK6136	CK6140	CK6150	CK6160	CK6170
Swing over bed	mm	360	400	500	600	700
Swing over cross slide	mm	190	210	260	350	440
Distance between centers	mm	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)	52(Optional 80)	52(Optional 80)	52(Optional 80)	52(Optional 80)
Spindle bore taper	-	MT6	MT6	MT6	MT6	MT6
Spindle nose type	-	C6	C6	C6	C6	C6
Spindle speed steps	-	Manual 2 steps	Manual 2 steps	Manual 2 steps	Manual 2 steps	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post	-	Electric 4 position	Electric 4 position	Electric 4 position	Electric 4 position	Electric 4 position
Tool size	mm	20 x 20	25 x 25	25 x 25	25 x 25	25 x 25
X axis travel	mm	200	230	280	320	350
Z axis travel	mm	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000	6000	6000	6000
Z axis rapid traverse	mm/min	8000	8000	8000	8000	8000
Tailstock quill diameter	mm	65	65	65	65	65
Tailstock quill taper	-	MT4	MT4	MT5	MT5	MT5
Tailstock quill travel	mm	130	130	130	130	130
Main spindle motor	kw	4	4	5.5	5.5	5.5
Coolant pump motor	kw	0.09	0.09	0.09	0.125	0.125
Weight for 750	kg	1600	1700	1800	1900	2000
Weight for 1000	kg	1700	1800	1900	2000	2100
Weight for 1500	kg	1800	1900	2000	2100	2200
Weight for 2000	kg	1900	2000	2100	2200	2300
Dimension for 750	mm	2200x1600x1650	2200x1650x1700	2200x1700x1750	2200x1750x1800	2200x1800x1850
Dimension for 1000	mm	2500x1600x1650	2500x1650x1700	2500x1700x1750	2500x1750x1800	2500x1800x1850
Dimension for 1500	mm	3000x1600x1650	3000x1650x1700	3000x1700x1750	3000x1750x1800	3000x1800x1850
Dimension for 2000	mm	3500x1600x1650	3500x1650x1700	3500x1700x1750	3500x1750x1800	3500x1800x1850

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
