UPVC Window Processing Machine PVC Profile Seamless Welding Machine

Product Description

Welding Machine

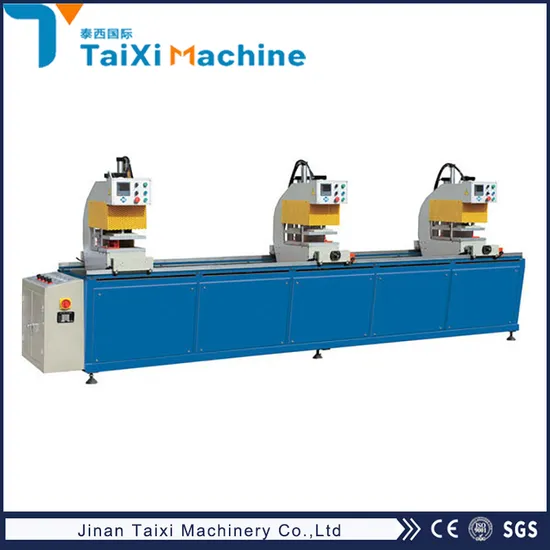

Three-head PVC seamless welding machine WFH-3-4MD


Description
Main features
WFH-3-4MD model welding and cleaning (seamless) welding machine for PVC window and door (plastic window and door) can clear welding beading at one time after finishing the welding, and can strictly control the size of welding seam; therefore, after welding of colorful section steel is finished, its surface welding creator looks perfect and top-grade, and its welding strength is higher than that of the original ones.
Technical Data
1). The window machine is used for PVC door-window welding.
2). PLC controls the welding action program, high reliability.
3). Machine heads can work separately or jointly.
4). Free angle welding of right machine head.
5). Parameters can be set to meet various profiles' processing requirements.
6). High welding precision.
7). Imported PLC and other main electric components.
8). One of the heads can weld various angles, which can meet the customers need of welding an arc and other special-shaped windows. Good welding corner appearance.
Technical Parameter:
Power Voltage: 380V/50Hz
Input Power: 2.5KW
Air Pressure: 0.6~0.8MPa
Air Consumption: 200L/min
Welding Range: 400mm-3500mm
Welding Profile Height: 20mm~120mm
Welding Profile Width: 0-120mm
Welding Angle Range: 30°~180°(max welding joints size 90mm)
Overall Dimension: 4300*1100*1700mm
Weight: 2000kg
Four-Corner Welding Machine SHP4-3000X1800X120
Description
Weld on an automatic basis the rectangular door/window frame or leaf made of plastics.
It increases the effective welding height and adopts the design of enhancing the overall rigidity relatively, rendering high productivity.
Linear bearing pair with high precision and stable processing property.
The specific positioning structure and clamping device guarantee the stability of welding precision in dimension, shape and position.
It adopts the three-side wrapping process, together with the profile positioning and clamping functions, effectively guaranteeing the precision in dimension, as well as precision in shape and position, such as flatness, etc. of the finished parts.
Parameters:

Input Power	6.5KW
Power Supply	380V/50Hz
Working Pressure	0.5~0.8MPa
Welding Height Range	20~120mm
Welding Width Range	120mm
Welding Range	400*400mm 1800*3000mm
Dimensions	5500*1700*3000mm
Weight	3200kg or so

Heavy-duty Four-head Seamless Welding Machine (double sided) WFH-4-4MD
Description
Heavy-duty Four-Head Seamless Welding Machine for Plastic Doors and Windows will remove all the weld beadings at one time after the welding, and strictly control the size of welding seam. Therefore, after welding, the colored profiles will present nice and elegant looks. The welding strength is greater than the angle strength of the original profile.
This machine enhances the welding strength with the control and pneumatic systems, so as to guarantee optimal welding strength under different environments. It may also carry out quantitative adjustment with the numerical parameters. Moreover, as the finished surface is cleaned immediately after the welding, leaving no cutting groove that may hook up or drag the blades, relatively increasing the contact area of welding by 10-20%. Basing on these two improvements, its welding strength is prominently better than the common welding equipment for doors and windows.
Parameters:
Input Power: 4.5KW
Power Supply: 380V/50Hz
Working Pressure: 0.5~0.8MPa
Gas Consumption: 260L/min
Welding Height Range: 20~100mm
Welding Range: 400~4500mm
Dimensions: 5300*1100*1700mm
Weight: 2600kg Four-Head Welding Machine SHJ4-120X4500
Description
It is capable of welding the combination of multi-shapes, as well as arbitrary angles within a certain range.
The four heads can either work separately or jointly, rendering flexible combination and high efficiency.
The right head can execute arbitrary angle welding within the range of 30°-180°.
Parameters:
Input Power: 4.5KW
Power Supply: 220V/50Hz
Working Pressure: 0.6~0.8MPa
Gas Consumption: 200L/min
Welding Height Range: 20~120mm
Welding Range: 400~4500mm
Dimensions: 5300*110*1700mm
Weight: 2000kg Three-Head Welding Machine SHJ3-120X4500 Description
For cutting glass stop at the angle of 45°and for milling pressure foot.
The efficient machine is capable of cutting two trim strips at the same time.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Profile Height 29mm
Working Range 320~1800mm
Dimensions 1900*700*1350
Weight 210kg
