Veinasa-Thprw-03 Rainfall Temperature Humidity Air Pressure Wind Speed Direction Mini 6 Elements Compact Ultrasonic Weather Station

Product Description

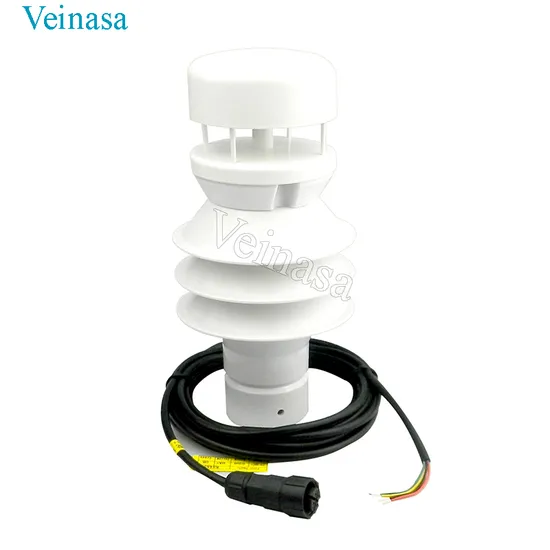

Veinasa-THPRW-03 Rainfall Temperature Humidity Air Pressure Wind Speed Direction Mini 6 Elements Compact Ultrasonic Weather Station Product Description
Veinasa-THPRW-03 Rainfall Temperature Humidity Air Pressure Wind Speed Direction Mini 6 Elements Compact Ultrasonic Weather Station has six important meteorological elements, high integration, small size, light weight, strong and durable characteristics, no moving parts, no maintenance and on-site calibration, and can simultaneously output six common meteorological environment parameters, including wind speed, wind direction, temperature, humidity, atmospheric pressure and Precipitation. Veinasa-THPRW-03 Rainfall Temperature Humidity Air Pressure Wind Speed Direction Mini 6 Elements Compact Weather Station It can be used with computer, data collector or other acquisition equipment with the same communication format. Product Parameters

Item	Parameters
Power Supply	7-30V DC
Average Consumption	1.7w
Body Material	ABS+Aluminum alloy
Installation method	screw installation; sleeve installation, etc
Communication Protocol	Modbus, SDI-12
Dimension	(Φ82mm~105)×212mm
Weight	About 0.38kg
The standard cable length	about 4m
Working temperature	30-80 ºC
Protection grade	IP65, Rain proof outdoor available
Operating Humidity	0-100%RH
	Principle	Range	Accuracy	Resolution
Air Temperature	MEMS sensor	-40ºC - +80ºC	±0.5ºC	0.1ºC
Air Humidity	MEMS sensor	0-100%	±3%	1
Air Pressure	MEMS sensor	300 - 1100hPa	±3%	0.1hPa
Wind Speed	Ultrasonic	0 - 40m/s	±3%	0.01m/s
Wind Direction	Ultrasonic	0 - 359°	±3 °	1°
Precipitation(Rain/Snow/Hail)	Radar	0-8mm/min	±10% ( @ wind speed≤5m/s )	0.1mm
Accumulated rainfall		0-6550mm	±10%	0.1mm
Landing object		0-8	1	1

Product Display
Features:Robust structure, easy for installation7/24 continuous monitoring MODBUS Protocol, standard RS485/RS232 output Built-in heating device ensures normal operation in cold weather6 elements included, all-in-one weather station Application Fields
Veinasa-THPRW-03 Rainfall Temperature Humidity Air Pressure Wind Speed Direction Mini 6 Elements Compact Ultrasonic Weather Station is widely used in wind speed and direction measurement. Major application fields:
1.City environmental monitoring
2.Agricultural automatic meteorological station
3.Traffic automatic meteorological station along the highwy
4.Meteorological field monitoring station. Company Profile

FAQ Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor Veinasa-CXS02B.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like solar radiation we have this existing model Veinasa-THPPRW-02.
Q: What's the common power supply and signal output?
A: Common power supply and signal output is 7-30V DC, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol. If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Ultrasonic Wind Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What's the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What's the standard cable length?
A: Its standard length is about 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it's 1 year. We can send you detailed warranty document if needed.
