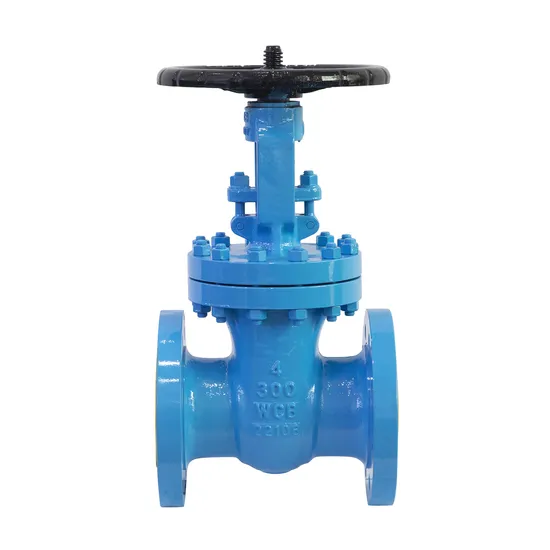

API Industrial Small Diameter Wedge Gate Valve, Dedicated to Petroleum

Product Description

Product Description
Product Description 1. Materials: WCB,WC6,LCB,CF8M,CF8,CF3,CF3M,...
2. Size: 2"~48"
3. Class:150LB~2500LB
4. Connection:RF,RTJ,BW
5. Standard: API600,API 603
6. Construction Type: BB,OS&Y,Rising Stem,Flexible Wedge
6. Face to Face: ≤ 36" to ASME B16.10, ≥ 40" to manufacturer's standard
7. BW End: ASME B16.25
8. Flanged End: ≤24" to ASME B16.5,≥26" to ASME B16.47 Series A

Detailed Photos
Product Parameters

NPS	DN	Class 150Lb								WT(kg)
Type	in	mm	L	D	D1	D2	b	z-Φd	H		D0
Z40H-150Lb	2"	50	178	152	120.5	92	16	4-Φ19	323	200	18
(Body:WCB)	21/2"	65	190	178	139.5	105	18	4-Φ19	347	250	28
Z40W-150LbP	3"	80	203	190	152.5	127	19	4-Φ19	383	250	30
(Body:CF8)	4"	100	229	229	190.5	157	24	8-Φ19	457	300	50
Z40Y-150LbP	5"	125	254	254	216	186	24	8-Φ22	632	300	63
(Body:CF8)	6"	150	267	279	241.5	216	26	8-Φ22	635	350	85
Z40Y-150LbR	8"	200	292	343	298.5	270	29	8-Φ22	762	350	128
(Body:CF8M)	10"	250	330	406	362	324	31	12-Φ25	895	400	220
Z40Y-150LbPL	12"	300	356	483	432	381	32	12-Φ25	1080	500	310
(Body:CF3)	14"	350	381	533	476	413	35	12-Φ29	1295	600	450
Z40Y-150LbRL	16"	400	406	597	540	470	37	16-Φ29	1435	600	550
(Body:CF3M)	18"	450	432	635	578	533	40	16Φ32	1626	650	700
	20"	500	457	699	635	584	43	20Φ32	1829	650	910
	24"	600	508	813	749.5	692	48	20Φ35	2175	700
	NPS	DN	Class 300Lb								WT(kg)
Type	in	mm	L	D	D1	D2	b	z-Φd	H	D0
Z40H-300Lb	2"	50	216	165	127	92	22	8-Φ19	330	250	30
(Body:WCB)
Z40W-300LbP	21/2"	65	241	190	149	105	25	8-Φ22	368	250	36
(Body:CF8)	3"	80	283	210	168.5	127	29	8-Φ22	394	300	61
Z40Y-300LbP	4"	100	305	254	200	157	32	8-Φ22	473	300	77
(Body:CF8)	5"	125	381	279	235	186	35	8-Φ22	660	350	106
Z40Y-300LbR	6"	150	403	318	270	216	37	12-Φ22	711	350	153
(Body:CF8M)	8"	200	419	381	330	270	41	12-Φ25	813	400	286
Z40Y-300LbPL	10"	250	457	444	387.5	324	48	16-Φ29	1003	500	412
(Body:CF3)	12"	300	502	521	451	381	51	16Φ32	1137	600	576
Z40Y-300LbRL	14"	350	762	584	514.5	413	54	20Φ32	1489	600	88
(Body:CF3M)	16"	400	838	648	571.5	470	57	20Φ35	1581	650
	NPS	DN	Class 600Lb								WT(kg)
Type	in	mm	L	D	D1	D2	b	z-Φd	H	D0
	2"	50	292	165	127	92	26	8-Φ19	510	254	44
Z40H-600Lb	21/2"	65	330	190	149	105	29	8-Φ22	554	254	60
(Body:WCB)	3"	80	356	210	168.5	127	32	8-Φ22	595	305	80
Z40W-600LbP	4"	100	432	273	216	157	38	8-Φ25	712	356	145
(Body:CF8)	5"	125	508	330	266.5	186	45	8-Φ29	826	406	236
Z40Y-600LbP	6"	150	559	356	292	216	48	12-Φ29	995	508	309
(Body:CF8)	8"	200	660	419	349	270	56	12-Φ32	1157	610	522
Z40Y-600LbR	10"	250	787	508	432	324	64	16-Φ35	1373	686	779
(Body:CF8M)	12"	300	838	559	489	381	67	20-Φ35	1603	686	1108
Z40Y-600LbPL	14"	350	889	603	527	413	70	20-Φ38	1930	762	1503
(Body:CF3)	16"	400	991	686	603	470	77	20-Φ41	2032	889	1939
Z40Y-600LbRL	18"	450	1092	743	654	533	90	20-Φ44	2286	889	2733
(Body:CF3M)	20"	500	1194	813	724	584	96	24-Φ44	2591	1118	3214
	24"	600	1397	940	838	692	109	24-Φ52	3124	1118	4177

Certifications
Packaging & Shipping

Company Profile
Yueqiang Valve Co., Ltd. has been committed to the development of the valve industry, is a set of control room design, research and development, manufacturing, sales and service in one of the large valve enterprises, is the national excellent pressure pipeline components manufacturing license AAA level credit enterprise, national key support high-tech enterprise implementation unit. Its production and development of gate valves. Globe valve, regulating valve, ball valve, butterfly valve, self-operated valve, vacuum valve and other products have been widely used In the world of petroleum refining fine chemical industry, coal chemical industry, NG, chemical fiber, electric power, metallurgy, new energy, pipeline transportation. Papermaking and other fields, and by the petrochina, Sinopec, CNOOC and other users recognized. The company is located in Zhejiang Wenzhou Economic Development Zone (pump valve town)- Wenzhou Economic Development Zone Gangteng Industry District, with branches in major cities across the country, service network throughout the country. The company implements network tube inside Management, relying on advanced door production equipment and excellent management, design talents, to achieve standardized operation in the fastest The time to provide customers with high quality products. The company adheres to the business philosophy of creating value for users, creating opportunities for employees and creating wealth for society, and adheres to the business philosophy of "survival by quality, development by innovation, efficiency by management, and market by service. Road, and strive to use 3-5 years to develop into an important influence, and with a certain international competitiveness of China Valve production backbone enterprises, for domestic and foreign customers to provide high-quality nuclear power, metallurgy, petrochemical, thermal power special valves Products, to achieve the company's leapfrog development. FAQ Q1: We are interested in your products?A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.Q2: Is the requirement for MOQ?A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 50pcs for each size. Generally speaking, it depends on your order.Q3: How about the warranty?A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.Q4: PaymentA4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.Q5: Can you manufacture different standards valves according to customer requirements?A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.If you want to know more about our products, please contact freely. We will patiently answer your all questions.
