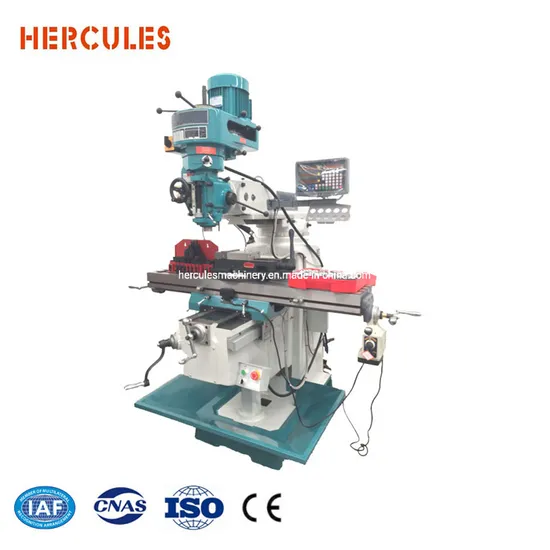

M5SV Fresadora Taiwan Spindle Vertical Turret Milling Cutting Lathe Grinding machine made in China
| US$5,300.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M5SV
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Spindle
NT40
Motor
5HP
Transport Package
Solid Wood Pallet
Specification
1850*1650*2300
Trademark
DURAMILLS or OEM
Origin
China
HS Code
8459691000
Production Capacity
3000 PCS/Month
Product Description
Advantage!!1. High-frequency heat treatment for working table: hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.
3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.
5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .
| Model | Unit | M5SV |
| Precision High Accuracy Series | ||
| Table size(L*W) | mm | 1370x305 |
| Max.load of table | Kg | 300 |
| X axis | mm | 1000 910 with power feed |
| Y axis | mm | 380 |
| Z axis | mm | 360 |
| Work table T slot (No.-size*pitch) | mm | 3-15.88x65 |
| Distance between spindle and table | mm | 50-410 |
| Ram travel | mm | 520 |
| Travel of spindle quill | mm | 127 |
| Auto crossward feed | mm/rev | 0.04/0.08/0.15 |
| Spindle speed | rpm(60Hz) | 80-5440 rpm 16 steps |
| Spindle hole taper | NT40 | |
| Main Motor | 5HP | |
| Tilt angle for milling head | left and right±45º | |
| Guiding tracks(X.Y.Z) | X dovetail, Y/Z square | |
| Dimension(L*W*H)(mm) | mm | 1850x1650x2300 |
| Milling head | Round step pulley milling head | |
| Weight (kg) | Kg | 1375 |
| Hercules Machinery Equipment Ltd. | ||
Optional Accessories:
Optional milling head:
1. Square head with side brake milling head;
2. Variable speed milling head
3. Frequency conversion head
