Mobile Vehicle Inspection Facility for Both Truck and Cars (Combination One)
| US$22,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AAYJ-15
Testing Equipment Type
Truck
Certification
CE, ISO
Update Method
by Internet
Condition
New
Standard
Standard
Transport Package
Package
Specification
3000KG
Trademark
AA4C
Origin
Guangdong
Production Capacity
300unit/Month
Product Description

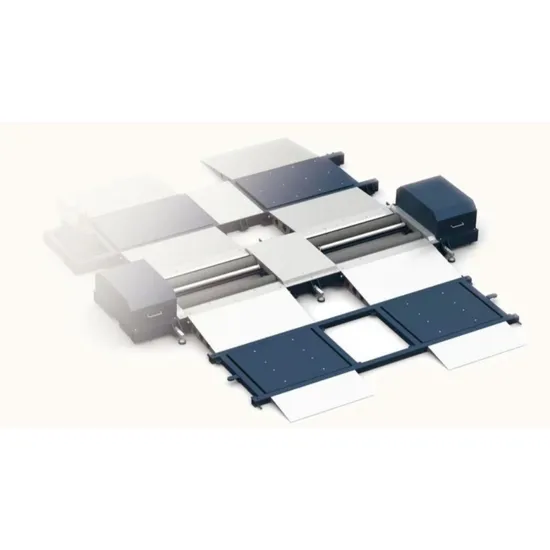

Mobile Vehicle Inspection Facility for both truck and cars - (Combination One)
Product Introduction: The mobile vehicle safety testing center has all the functions of fixed test station: it can be used for axle load of 15 tons ,two axes with wheelbase of less than 6 meters (rear Mercedes buses),Three-axis(single bridge drive), two-axle trailer, semi-trailer truck to implement headlamps, exhaust, smoke, sound level, side slip, axle load, braking power, speedometer and other safety performance testing.
Mobile
Different mobile devices can be combined to form test lane with different functionsNo need foundation. easy to move
Easy maintenance, simple connection
Carriage
With high-power silent generator, movement is not limited by power supply
Operating room with air conditioning, quiet and comfortable, not effected by the weather
Ultra-thin base design, lower chassis vehicles can be inspected
Hydraulically flipped ramps without manual intervention
Synchronization lift and down, to prevent the carriage from unbalancing
Can be customized according to customer needs
Technical parameter:
| Model | Load | Test item/Features/Description | Qty | Configuration feature |
| CTYJ-15 | 15T | 15T brake tester with axle load-Mobile one | 1 | Motor Power 11KW X 2 Testing Speed 2.0 Km/h Testing Range 0-80KN Roller Size D150mm x 1200mm Power Supply 380V 50Hz |
| 15T Side slip tester (single board)-Mobile one | 1 | Throw Speed 5Km/h-10Km/h Testing Plate Length 800mm | ||
| 15T Mobile speedometer tester-Mobile one | 1 | Roller size: 1.00-1200mm Testing speed 0-120Km/h | ||
| 15T play detector | 1 | Motor Power 2KW Power Supply 24V, 380V/220V Movement of Plate: ±80mm x ±50mm Hydraulic Pressure: 16Mpa | ||
| headlight tester | 1 | Manual headlight tester: Testing range 0-25000cd | ||
| Opacimeter | 1 | Opacimeter for testing diesel vehicle | ||
| gas analyzer | 1 | For testing the car | ||
| trolley | 1 | For gas and smoke | ||
| Control system | 1 | Including cabinet, software, industrial computer, monitor, and tablet computer with printer and LED guide as well as voice broadcasting system | ||
| Carriage | 1 | Including: container box, hydraulic system, generator, lifting system |
