Bsc Dry Red Chilli Flakes Making Machine Pepper Granules Crusher Chilli Coarse Crusher Brightsail

Product Description

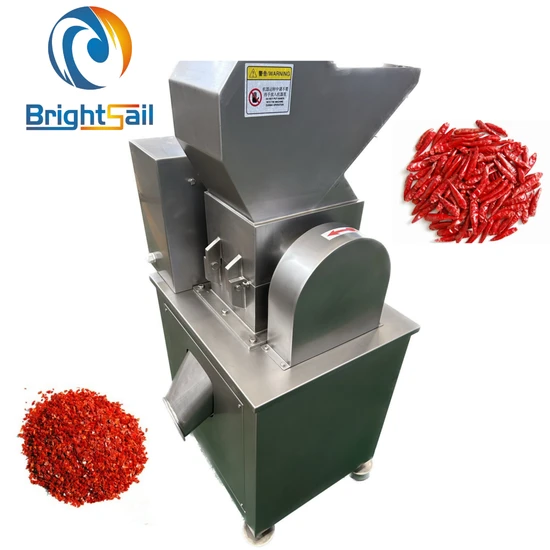

BSC dry red chilli flakes making machine pepper granules crusher chilli coarse crusher Brightsail
Product Description
Introduction of BSC dry red chilli flakes making machine pepper granules crusher chilli coarse crusher Brightsail: Our coarse crusher has two functions mainly: (1)Crush raw materials into flakes or granules like ginger granules,chili flakes,tea granules,black pepper granules,biscuit flakes,herb granules...etc (2)It is used as a primary crusher before grinding. For example, if we need to make cinnamon powder, we shall crush the long and big cinnamon into pieces, then feed the pieces into pulverizer, otherwise the cinnamon is too big to be fed into the pulverizer.
Application and work method of BSC spice crusher: It's applied in food,chemical and pharmaceutical lines. Raw material is fed into the crush chamber through the feed hopper,then crushed and cut by the fixed and rotating knives in the chamber, and flows to the exit automatically under the effect of rotating centrifugal force.

There are two type discharge way, one is side way, one is bottom way.
Detailed Images 1) The discharge part can be vertical type (on the back side), and table type (on the bottom).
2) Cutter inside the mill chamber.

These are pictures of inner part of our BSC spice and herb crusher
Technical Data of BSC dry red chilli flakes making machine pepper granules crusher chilli coarse crusher Brightsail

Model	BSC-200	BSC-300	BSC-400	BSC-600	BSC-1000
Capacity(kg/h)	80-300	100-800	200-1000	500-1500	1000~2500
Size of input granules (mm)	<100	<100	<100	<100	<100
Crushing Fineness(mm)	0.5-20	0.5-20	0.5-20	0.5-20	0.5-20
Rotor speed (rpm)	530	530	530	530	540
Motor power(KW)	3	5.5	7.5	11	15
Overall Size(L*W*H)(mm)	600*500*1228	720*700*1303	900*700*1306	1020*700*1306	1330*850*1826
Weight(Kg)	200	300	380	500	1000

Overall drawing of BSC spice and herb crusher machine (side discharge type)
Pictures of BSC-1000 spice and herbal crusher To avoid flying dust, a filter box is optional to be connected with the crusher; For big capacity crushing, a belt conveyor machine is recommended;
Before the belt conveyor, a metal detector machine is also optional and recommended.
Not only crusher Not only spice crusher,herbal crushing machine, We provide overall one-stop spice&herb product processing machines and solutions. We provide washing machine,cutting machine,dryer, roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines......etc
Company Information
Brightsail spice & herb machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
PACK WAY If send machine by LCL, we will pack the machine in wooden box;
If send machine by FCL, we will split the machine into smaller parts, wrapped by film,
and fixed in container by steels.
