Advanced PLC Changeable Cable Tray Roll Forming Machine with Decoiler

Product Description

Product Description
Experience the pinnacle of innovation with our state-of-the-art Automatic Changeover Cable Tray Roll Forming Machine, designed to efficiently produce cable trays with precision-drilled holes. Capable of handling widths from 65mm to 350mm, this machine embodies advanced technology for seamless transitions and remarkable productivity.
This highly specialized cable tray production line is engineered for unparalleled performance in cable tray roll forming. Beyond crafting standard cable trays, it effortlessly completes the fabrication of cover plates, making it an indispensable asset across diverse sectors. From power transmission to commercial buildings, this solution is ideal for data centers, computer rooms, parking lots, offices, ISPs, hospitals, airports, educational institutions, and industrial factories, ensuring comprehensive application coverage and efficiency.

Profiles:
Introducing the globally acclaimed cable tray design, now a bestseller across international markets! With a versatile width range of 60-350mm and a robust thickness spectrum of 0.5-1.5mm, we offer bespoke customization tailored to your specific needs, ensuring that our cable trays perfectly align with your project requirements.
Material:
Effective Width: 60-350mm Effective Width Tolerance: ±0.5mm Material Thickness: 0.5-1.5mm Length Tolerance: ±1(4m) Applicable Material: Galvanized Sheet (GI) Inspection Thickness: 0.5-1.5mmCold Rolled Steel (CRC)Our meticulously designed machine is built to manage materials with an impressive yield strength between 235Mpa and 550Mpa, promising unparalleled strength and enduring reliability with every operation.
This production line is mainly composed by following parts:
1. Uncoiler. Featuring a single support with a four-bar tension structure, our uncoiler utilizes a hydraulic cylinder to provide swift and dependable tension force adjustments, ensuring consistent material handling.
2. Leveler. Equipped with 7 precision rollers for optimal leveling, plus 2 pairs of guide and pneumatically clamped feed rollers, this leveler employs frequency conversion speed regulation for precise control and efficiency.
3. Servo Feeder. Our state-of-the-art servo feeder allows for precise material feeding based on custom punching step lengths, accommodating multiple feeding parameters simultaneously for maximum convenience and speed.
4. Multi-stations Punching & Cutting Unit. The unit incorporates a liquid four-column press mechanism, offering an economical and versatile solution. With adaptive mold adjustments, it enables continuous punching of varied hole types with exceptional efficiency.
5. Adjustable transmission platform.This platform features automatic width adjustments governed by PLC controls, driven by a powerful motor. It seamlessly feeds materials to the roll forming machine, significantly reducing labor costs.

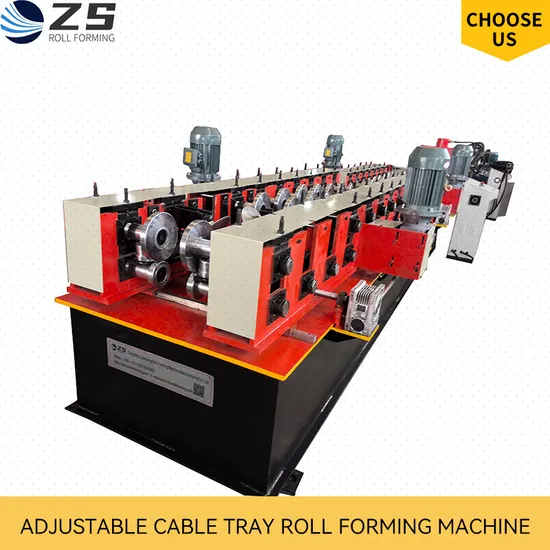

6. Cantilever adjustable forming machine. Our cantilever forming unit utilizes a sophisticated combination of motor, reducer, spiral bevel gear, and chain drive. Simplified touch screen parameter settings allow for effortless adjustments to produce products with varying bottom widths and heights, ensuring ease of use and reliability.
Working Flow:
Decoiler---Flattening Machine---Hydraulic Punching and Cutting Machine---5m Feeder Table---Roll Forming Machine---Production Receive Table
Detailed Photos

Unyielding 3-Ton Capacity: Designed to withstand substantial weight with unmatched strength, this machine ensures flawless operation every time.Advanced Electrical Decoiler System: Comes equipped with a sophisticated flattening system in one comprehensive set, optimizing your production processes seamlessly.
Intelligent Electrical Control: Perfect the management of steel coil inner bore shrinkage with precision stopping capabilities, offering you ultimate control.
Maximum Feeding Width:600mm
Versatile Coil ID Range: Tailored to meet your requirements with an adaptable range of508±30mm, Expansive Outside Diameter:1500mm
Impressive Max Capacity: Elevate your operations with a load-bearing capability of3ton, Dynamic Motor Excellence: Driven by a powerful3KW, Enhanced Frequency Speed Control: Benefit from state-of-the-art technology ensuring unmatched efficiency.
Adopting 7 rollers for precise leveling, with 2 pairs of guide rollers, the feed rollers are pneumatically clamped with frequency conversion speed regulation and switch control.
Sheet feeding is aligned with the actual step length needed for punching. Multiple feeding parameters can be set simultaneously for speedy, convenient operation.
Features a liquid four-column press mode that is cost-effective, versatile, and swift. The machine offers flexible mold adjustments for continuous multi-type hole punching.
It automatically adjusts different widths controlled by PLC, driven by a motor, continuously feeding sheets to the roll forming machine, thus cutting labor costs.
The forming unit uses a cantilever forming machine mode. Powered by a motor, reducer, spiral bevel gear, and chain drive. For different bottom widths and waist heights, simply set parameters on the touch screen for ease, speed, and reliability. .

Robust Body Frame: Crafted fromH450 Grade Steel: Assembled through precision welding to ensure superior strength and lasting durability. through Precision Welding for Superior Strength Durable Side Wall: Constructed fromPremium Casting Steel; Rollers Precisely Crafted: Manufactured from High-Quality Bearing Steel Cr12,Precision Machined with Hard Chrome Coating: Engineered for durability and optimized performance. Shafts Constructed fromSuperior 45# Steel,Expertly Quenched and Tempered: Coated in protective hard chrome plating. Diameter=φ70mm, Meticulously Machined for Peak Performance Gear & Chain Drive: Incorporating17 Intricate Stepsfor Optimal Forming: Crafted with precision engineering to deliver refined results. Main Motor Power=7.5KW,Integrated Frequency Speed Control: Ensures smooth, efficient operations. Efficient Speed Reducer Motor:KSeries Product Speed:Achieve impressive speed with our machine, operating efficiently at 10-15m/min to maximize productivity.(Including Punching and Cutting Time): Delivering consistent, reliable output for superior performance.
Advanced PLC Control System: Offering you precision control and seamless automation to elevate operational excellence. Experience precision like never before with our Automated Control of Quantity and Cutting Length, designed to deliver unparalleled accuracy. Achieve the highest standards of quality and consistency in every operation, setting a new benchmark for excellence. Seamlessly Input Production Data: Revolutionize your production management with our intuitive touch screen interface. Effortlessly input crucial production data-such as batch size, piece count, and length-directly into the system. Experience cutting-edge automation for enhanced efficiency and simplicity, driving your operations into the future with unmatched ease and precision.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Delat (German brand)
Inverter	Delta (German brand),follow with customer's requirment
7-Inch Color Touch Screen	Delta (German brand),follow with customer's requirment
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor,follow with customer's requirment
Thermal Relay	Siemens(German brand),follow with customer's requirment
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V follow with customer's requirment

Comprehensive After-Sale Service: At Cangzhou Zunsheng Import and Export Co., Ltd., customer satisfaction is our top priority, long after your purchase. We provide a comprehensive after-sale support system designed to ensure your ongoing success and complete peace of mind.
1. Warranty Period Extends for: Enjoy our outstanding extended warranty, offering you exceptional assurance and safeguarding your investment for an impressive duration. 18 months, offering you and your machinery steadfast protection with absolute reliability and security. In just a few short months after the arrival of your Precision Galvanized Steel Metal Store Fixture Square Tube Cold Forming Machine, you'll unlock its full potential and see your manufacturing capabilities soar. Leverage the machine's state-of-the-art technology to achieve significant operational advantages, greatly enhancing your manufacturing efficiency and prowess. For an impressive 24 months, enjoy the convenience of our complimentary courier service. This outstanding benefit ensures that any necessary replacement parts are promptly delivered to your doorstep at no extra cost, ensuring seamless operation and maintaining cost-efficiency. 2. Experience unmatched technical support: Our dedicated technical team is here to support you throughout the entire lifespan of our advanced machines. We ensure your operations reach optimal performance with continuous expert guidance and support. 3. Expert Technicians at Your Service: Our highly skilled technicians are on hand to provide on-site installation and comprehensive training for your staff. This essential service is available at a reasonable additional cost, designed to enhance your operational efficiency and mastery of our machines.
Terms Of Trade: Partner with Cangzhou Zunsheng Import and Export Co., Ltd. for a seamless transaction experience. Our trade terms are designed with exceptional flexibility and transparency, creating a partnership perfectly tailored to your needs. Collaborate with confidence through our renowned processes and machinery. With Holes Auto Changeover Type 65-350mm Cable Tray Roll Forming Machine,offering unparalleled precision and excellence at every stage.

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style: Embrace the sophistication and security of our premium packing solutions from Cangzhou Zunsheng Import and Export Co., Ltd. Each unit of our With Holes Auto Changeover Type 65-350mm Cable Tray Roll Forming Machine is carefully packed to ensure it arrives in pristine condition, ready for immediate use.

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Our Advantages: Cangzhou Zunsheng Import and Export Co., Ltd. is at the forefront of value redefinition with groundbreaking innovation and superior quality through our unparalleled offerings. With Holes Auto Changeover Type 65-350mm Cable Tray Roll Forming Machine. Our distinctive strengths lie in advanced technology, superior durability, and a steadfast commitment to sustainability. This positions us as a global leader, ensuring your complete satisfaction and success in every project.
