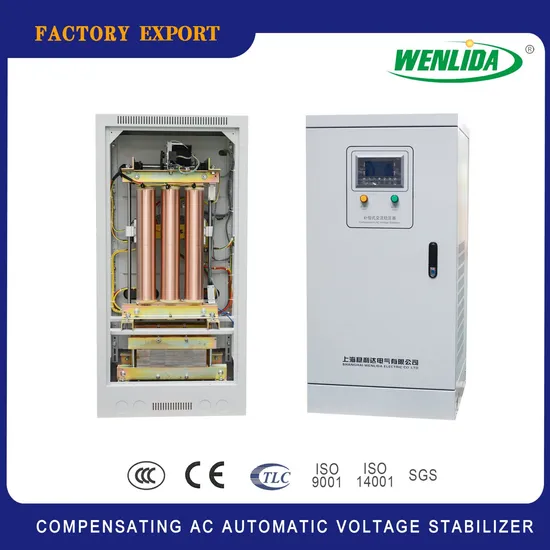

High Precision Automatic Servomotor Voltage Stabilizer Regulator Three Phase 10kVA~3600kVA for Communication Station with Reliable Capability

Product Description

COMPANY PROFILE:
Shanghai Wenlida Technology Co., Ltd (hereinafter "Wenlida") is the largest manufacture base in China, the drafter of the national information industry standard, and the famous provider of voltage stabilizer.Wenlida has more than ten-year's glorious history. Since 1990, Beijing, Guangzhou, Changchun, Chongqing, Chengdu, Qingdao, Jinan and Suzhou office come into existence successively. In 2009, two new standard workshops and R&D center are established in Shanghai Jiading (37000m2) and Zhejiang Jiashan (45000m2) respectively.
Wenlida has gained public praise for its advanced technology, excellent products, stable quality and first class service. Experienced in research and technology, system design, manufacture craft and products quality has made Wenlida to be famous in the power supply industry. In 1998, 2005 and 2007, Wenlida becomes the appointed supplier of Haier, ZTE and Huawei respectively. Also, it is the qualified supplier of MITSUBISHI,HITACHI,SIEMENS,DOOSAN,MGE,Hisense and OMRON.
Nowadays, Wenlida is applying itself to the research and manufacture of clean energy, environment protection, energy saving, safety guard products. Based on the "specialized voltage stabilizer", "transformer" and "harmonic active filters", Wenlida will try to become the modern designer and manufacturer of new power supply. COMPANY PROFILE:
Shanghai Wenlida Technology Co., Ltd (hereinafter "Wenlida") is the largest manufacture base in China, the drafter of the national information industry standard, and the famous provider of voltage stabilizer.Wenlida has more than ten-year's glorious history. Since 1990, Beijing, Guangzhou, Changchun, Chongqing, Chengdu, Qingdao, Jinan and Suzhou office come into existence successively. In 2009, two new standard workshops and R&D center are established in Shanghai Jiading (37000m2) and Zhejiang Jiashan (45000m2) respectively.
Wenlida has gained public praise for its advanced technology, excellent products, stable quality and first class service. Experienced in research and technology, system design, manufacture craft and products quality has made Wenlida to be famous in the power supply industry. In 1998, 2005 and 2007, Wenlida becomes the appointed supplier of Haier, ZTE and Huawei respectively. Also, it is the qualified supplier of MITSUBISHI,HITACHI,SIEMENS,DOOSAN,MGE,Hisense and OMRON.
Nowadays, Wenlida is applying itself to the research and manufacture of clean energy, environment protection, energy saving, safety guard products. Based on the "specialized voltage stabilizer", "transformer" and "harmonic active filters", Wenlida will try to become the modern designer and manufacturer of new power supply.MODEL DESCRIPTION OF DIAGRAM:TECHNICAL PARAMETERS:

Item No.	Item Name	Item Description
1	OUTPUT VOLTAGE (V)	380V +/- 20%
2	WORKING FREQUENCY (Hz)	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	CONSTANT VOLTAGE PRECISION	+/- (1~5%) adjustable
5	NOISE (dB)	55 dB
6	INSULATION CLASS	F
7	OPERATION TIME (hr)	≥ 100,000 hours
8	PROTECTION CLASS	IP 20
9	VOLTAGE WITHSTANDING	2000V, 1min. Not broken
10	WAVE DEFORMATION / DISTORTION	≤ 0.1%
11	EFFICIENCY	≥ 98%
12	INSULATION RESISTANCE (MΩ)	≥ 2MΩ
13	RESPONSE TIME (ms)	≤ 100ms
14	TIME FOR STABILIZING	When the input voltage jumps 10% relative to the rated value, the stabilizing time is less than 1.5s.
15	PACKING	Plywood packing
16	ELECTRICAL SAFETY	CE
17	ALTITUDE (m)	< 2000m
18	RELATIVE HUMIDITY	< 90%
19	AMBIENT TEMPERATURE (ºC)	-15ºC to +45ºC
20	COOLING METHOD	Forced air cooling with fan
21	ANTI-SURGE PERFORMANCE	The input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs and 100μs, such as lightning induction in the equipment.

MAIN COMPONENTS (old model):
MAIN STRUCTURE:
CONDITION OF USE:The SBW AC voltage stabilizer should be used indoors. Normal use conditions:
(1) Ambient temperature: -15ºC~+45ºC
(2) Altitude : ≤1000m
(3) Relative humidity: ≤90%
(4) There should be no gas, steam, chemical precipitation, dust, dirt and other explosive and corrosive media that seriously affect the insulation of the stabilizer.
(5) There should be no severe vibration or bumps in the installation site
(6) Any non-compliance with the above-mentioned special conditions shall be determined through negotiation between the user and our factory.COMPANY PROFILE:
Shanghai Wenlida Electric Co., Ltd (hereinafter "Wenlida") is the largest manufacture base in China, the drafter of the national information industry standard, and the famous provider of voltage stabilizer.
Wenlida has more than ten-year's glorious history. Since it established in 1990, Beijing, Guangzhou, Changchun, Chongqing, Chengdu, Qingdao, Jinan and Suzhou office come into existence successively. In 2009, two new standard workshops and R&D center are established in Shanghai Jiading (37000m2) and Zhejiang Jiashan (45000m2) respectively.
Wenlida has gained public praise for its advanced technology, excellent products, stable quality and first class service. Experienced in research and technology, system design, manufacture craft and products quality has made Wenlida famous in the power supply industry. In 1998, 2005 and 2007, Wenlida becomes the appointed supplier of Haier, ZTE and Huawei respectively. Also, it is the qualified supplier of MITSUBISHI,HITACHI,SIEMENS,DOOSAN,MGE,Hisense and OMRON.
Nowadays, Wenlida is applying itself to the research and manufacture of clean energy, environment protection, energy saving, safety guard products. Based on the "specialized voltage stabilizer", "transformer" and "harmonic active filters", Wenlida will try to become the mordern designer and manufacturer of new power supply.
FAQ
Q 1. What is the payment term?
A. We accept T/T (30% deposit, balance before shipment).
Q 2. How long is the production lead time?
A. Usually it takes about 10-35days. For samples, usually within 4 weeks.
Q 3. How do you pack the products?
A. We use protective strong polywood case.
Q 4. What materials are used in transformers?
A. We have 2 types according to your requirement. One is 100% copper, the other one is copper with aluminum. Please be noted that the cost and life cycle are different for each type.
Q 5. Do you provide Form A or C/O ?
A. Yes, please contact us if you need.
Q 6. Do you accept to use our logo?
A. Yes, we accept OEM order if there's large quantity. However, we'll be appreciated if you use our MODERN logo.
Q 7. What is your MOQ?
A. Small capacity products like AVR, MOQ: 10 units.
Large capacity products, MOQ: 1 unit.
Q 8.Where is your market?
A. Our products are sold well in many countries around the world. We look forward to our further cooperation.
Q 9. What kind of certificate do you have ?
A. We've already obtained CE, ISO9001 and technical patent certificates.
